Products specifications

Manufacturer NXP USA Inc.
Applications Board Mount
Pressure Type Absolute
Operating Pressure 14.5PSI (100kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 40 mV (10V)
Supply Voltage (V) 10V ~ 16V
Port Style No Port
Features Temperature Compensated
Termination Style Gull Wing
Maximum Pressure 58.02PSI (400kPa)
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 5-SMD Module
Supplier Device Package 5-MPAK
Manufacturer Pack Quantity 75
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810483-MPXM2102A
Ultra Librarian 3D Model Ultra Librarian MPXM2102A CAD Model

Description

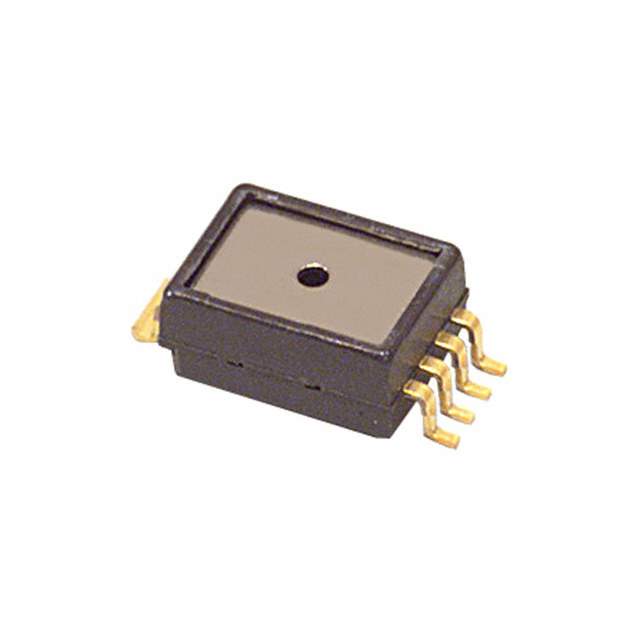

NXP MPXM2102A Pressure Sensor

The NXP MPXM2102A is a highly accurate, integrated silicon pressure sensor designed for a wide range of applications, particularly those involving microcontroller or microprocessor with A/D inputs. This state-of-the-art sensor features a piezoresistive transducer bridge configured to measure the absolute pressure of gases and liquids.

Constructed with NXP's advanced sensor technology, the MPXM2102A offers excellent reliability and robustness with a small form factor, making it ideal for space-constrained designs. It is capable of sensing a pressure range from 0 to 100 kPa, which translates to 0 to 14.5 PSI, providing the precision necessary for critical measurements in various industrial and consumer products.

Key Features:

  • Pressure Range: 0 to 100 kPa (0 to 14.5 PSI)
  • Sensitivity: The device provides a typical output voltage of 40 mV when subjected to the full-scale pressure input.
  • Temperature Compensated: From -40°C to +125°C to ensure stable performance under varying environmental conditions.
  • Small Size: The compact package allows for easy integration into a variety of systems without significant spatial constraints.
  • High Reliability: Silicon piezoresistive sensing element provides a stable signal, ensuring accurate readings over the life of the sensor.
  • Low Power Consumption: Suitable for battery-powered devices due to its efficient power usage.

The MPXM2102A sensor is versatile and can be used in applications such as pump and compressor control, engine control systems, altimeters, and barometers, as well as in medical and industrial instrumentation where precision pressure measurement is crucial.

Its robust design also means it can withstand exposure to harsh environments, which is particularly important for outdoor or automotive applications. The sensor's package is designed to be easily mountable and is compatible with various types of electronic circuits, allowing for flexibility in design and straightforward integration into existing systems.

Overall, the NXP MPXM2102A is a reliable choice for designers and engineers looking for a high-performance pressure sensor that combines accuracy, durability, and ease of use in a compact package.
