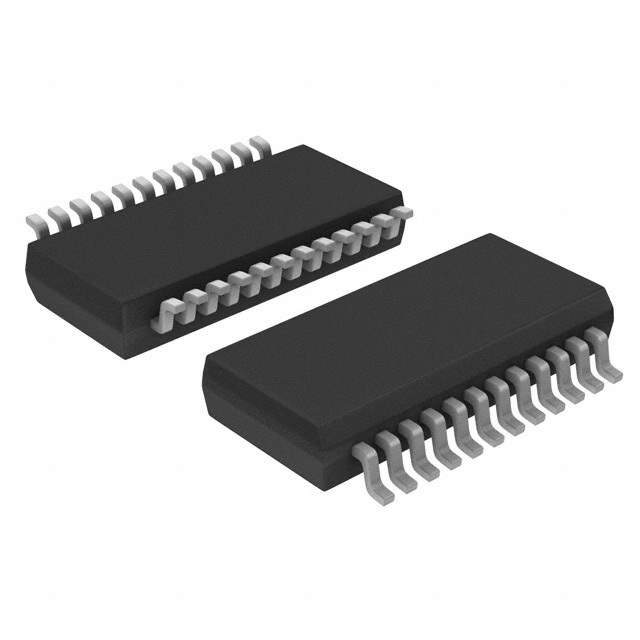

The NXP PCA9671DK is a state-of-the-art remote 16-bit I/O expander designed to optimize the interface between peripheral components and microcontrollers or digital signal processors in a wide array of applications. This powerful component is particularly useful in situations where input/output (I/O) pin expansion is needed, especially in space-constrained environments.

Key Features

• Extended Temperature Range: The PCA9671DK operates reliably across a broad temperature range, making it suitable for industrial applications.
• High-Speed I2C-Bus Interface: Featuring a fast I2C-bus interface with speeds up to 1 MHz, the device ensures quick communication with the host controller.
• 16-bit I/O Ports: The device boasts 16 I/O ports that are configurable as either inputs or outputs, providing flexibility for a variety of uses.
• Low Standby Current: Its low standby current is advantageous for power-sensitive applications, contributing to energy efficiency.
• Interrupt Output: An interrupt output pin alerts the host controller when an input state changes, enhancing system responsiveness and efficiency.
• Polarity Inversion: Input port polarity is programmable, allowing for easy adaptation to different logic signal requirements.

Applications

The PCA9671DK is ideal for expanding the I/O capabilities of microcontrollers in a diverse range of applications, including:

• Industrial control systems
• Servers and data centers
• Embedded systems
• Home automation
• Robotics

Technical Specifications

Overall, the NXP PCA9671DK is an excellent choice for designers looking to enhance the I/O capabilities of their systems with minimal power consumption and maximum reliability.
