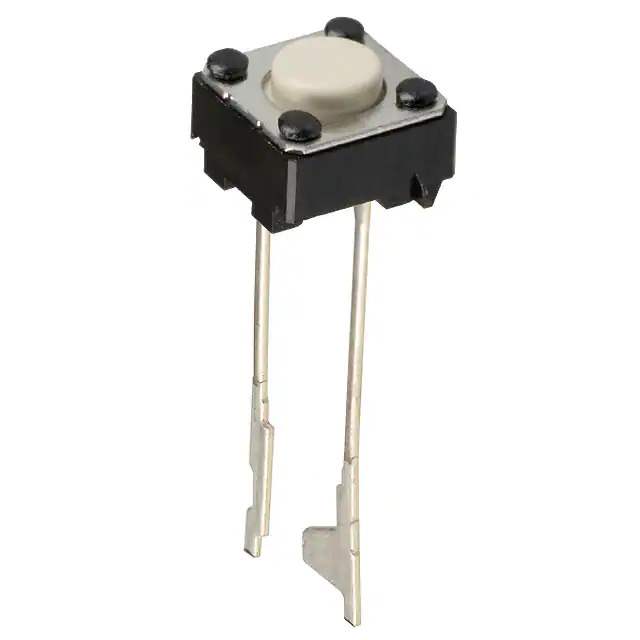

B3F-6000 Real Image
Same model may have multiple batches, images only for reference.

B3F-6000

Part No B3F-6000
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
B3F-6000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3F
Package Cut Tape (CT)Tape & Box (TB)
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number B3F
Standard Package 1,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 568069-B3F-6000
Ultra Librarian 3D Model Ultra Librarian B3F-6000 CAD Model

Description

The B3F-6000 is a tactile switch from Omron, renowned for its high-quality electronic components.

  • Series: B3F
  • Mounting Type: Through-Hole
  • Termination Style: PC Pin
  • Outline: 6.00mm x 6.00mm
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 0.25mm
  • Operating Force: 100gf
  • Mechanical Life: 1,000,000 cycles
  • Operating Temperature Range: -25°C to 70°C
