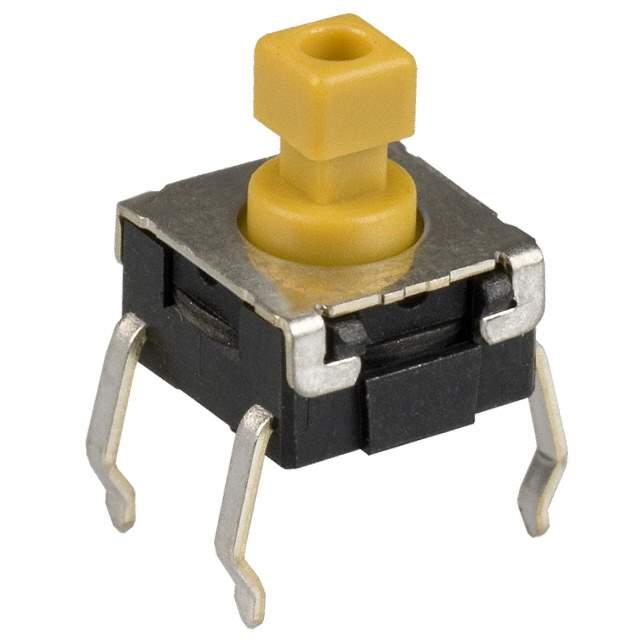

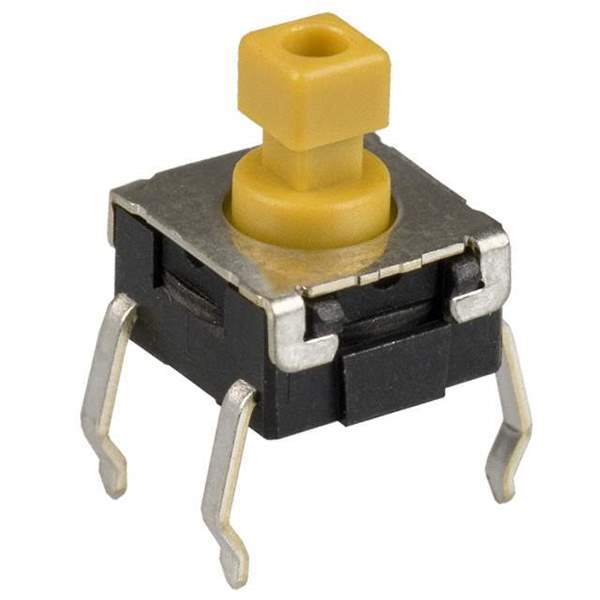

B3W-1052 Real Image
Same model may have multiple batches, images only for reference.

B3W-1052

Part No B3W-1052
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet
B3W-1052 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 23 Weeks
Features Tactile Switch SPST-NO Top Actuated Through Hole
Manufacturer Omron
Series B3W
Package Bulk
Operating Temperature Range -25°C ~ 70°C
Mounting Through Hole
Family Name B3W
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number B3W-1052 BY OMZ, B3WZ0004E, B3W1052, B3W-1052BYOMZ, SW420, B3W1052BYOMZ
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 863088-B3W-1052
Ultra Librarian 3D Model Ultra Librarian B3W-1052 CAD Model

Description

The Omron B3W-1052 is a tactile switch with SPST-NO contact form.

  • Actuation: Top-actuated
  • Mounting Style: Through-hole
  • Operating Temperature: -25°C to 70°C
  • Package: Bulk
  • Quantity per Package: 1500
  • Estimated Production Lead Time: 23 weeks
