TL3901AGQF180 E-Switch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

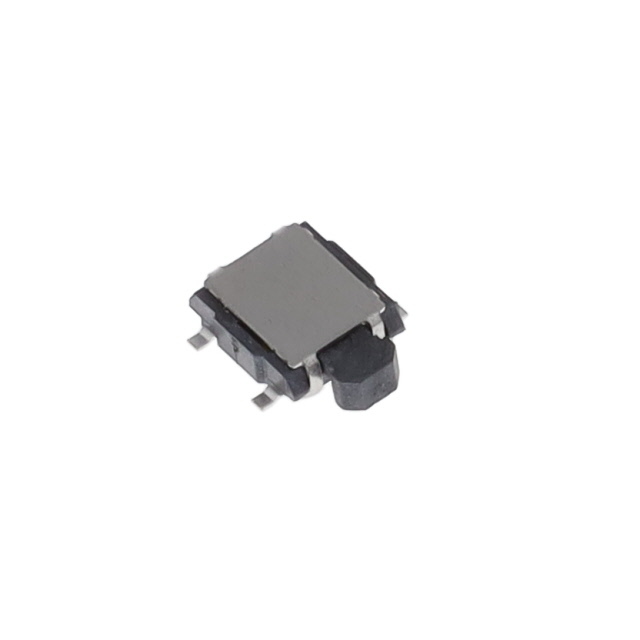

TL3901AGQF180

Part No TL3901AGQF180
Manufacturer E-SWITCH
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesTactile Switches
Mfr E-Switch
Series TL3901
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style Gull Wing
Outline 6.00mm x 5.40mm
Illumination Non-Illuminated
Operating Force 180gf
Features Board Guide
Operating Temperature -40°C ~ 85°C
Switch Travel 0.30mm
Mechanical Life 50,000 Cycles
Base Product Number TL3901
Ultra Librarian 3D Model Ultra Librarian TL3901AGQF180 CAD Model
