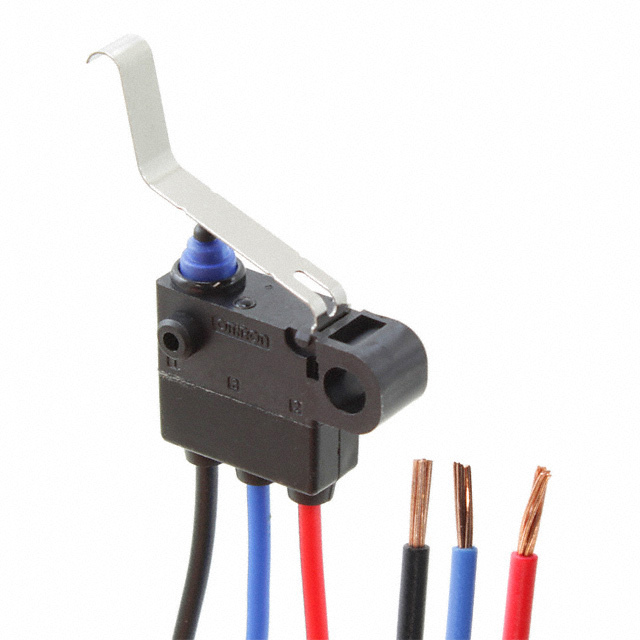

Same model may have multiple batches, images only for reference.
D2QW-C003H Omron – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

D2QW-C003H

Part No D2QW-C003H
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 0.1A 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 153gf
Operating Position 0.330" (8.4mm)
Overtravel 0.106" (2.7mm)
Mechanical Life 500,000 Cycles
Electrical Life 200,000 Cycles
Temperature Range - Operating -40°C ~ 85°C
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1551782-D2QW-C003H
Ultra Librarian 3D Model Ultra Librarian D2QW-C003H CAD Model

Description

N
