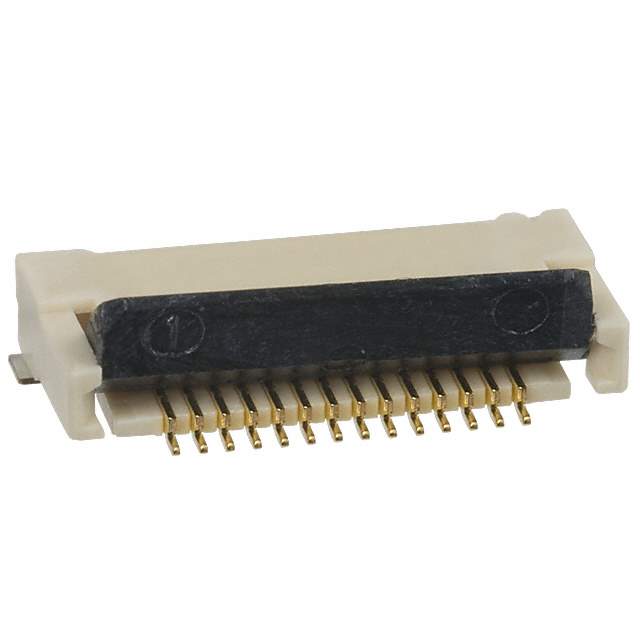

XF2M-2015-1A-R100

Name: XF2M-2015-1A-R100
Brand: Omron
SKU: 1178606
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	XF2M-2015-1A-R100
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 20POS 0.50MM R/A / 20 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Omron Electronics Inc-EMC Div
Series	XF2M
Package	Strip
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	20
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.083" (2.10mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90µin (0.150µm)
Housing Color	Natural
Actuator Color	Black
Mating Cycles	20
Base Product Number	XF2M
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	XF2M-2015-1A-R100-ND,Z5253,XF2M20151AR100
Standard Package	100
Win Source Part Number	1178606-XF2M-2015-1A-R100
Ultra Librarian 3D Model	Ultra Librarian XF2M-2015-1A-R100 CAD Model

Alternative Products

Description

The Omron XF2M-2015-1A-R100 FFC connector is a 20-position connector with a 0.020-inch pitch.

Positions: 20
Pitch: 0.020-inch
Contact Finish: Gold
Contact Finish Thickness: 5.90µin
Voltage Rating: 50V
Current Rating: 0.5A
Temperature Range: -30°C to 85°C
Mating Cycle: 20
Mounting: Surface-Mounted, Right-Angled
