Products specifications

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr ON Semiconductor
Package Tape & Reel
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 500 mA
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Base Product Number DBD1
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 868251-DBD10G-TM-E
Ultra Librarian 3D Model Ultra Librarian DBD10G-TM-E CAD Model

Description

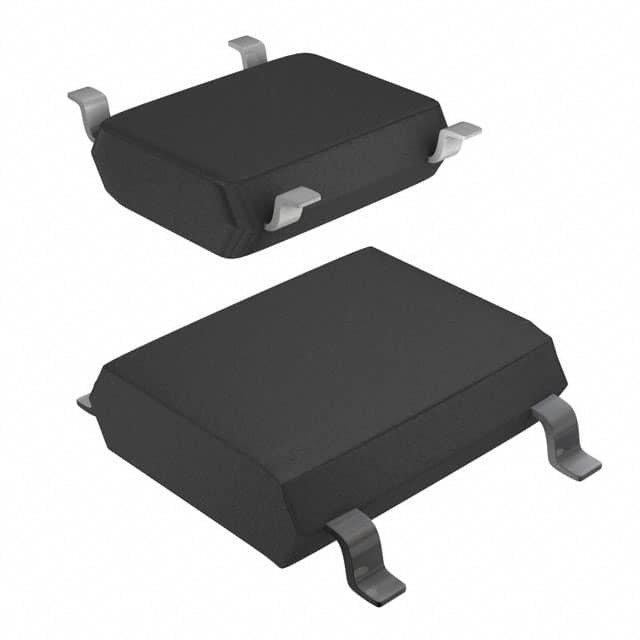

ON Semiconductor's DBD10G-TM-E: A Robust Diode for High-Efficiency Applications

The DBD10G-TM-E from ON Semiconductor is a cutting-edge diode designed to meet the demanding requirements of modern high-efficiency power applications. This product is a testament to ON Semiconductor's commitment to providing energy-efficient solutions that do not compromise on performance or reliability.

Key Features

  • High Surge Capability: The DBD10G-TM-E is engineered to withstand high surge currents, making it an ideal choice for applications that are susceptible to surges and spikes in current.
  • Low Forward Voltage Drop: With its low forward voltage drop, this diode ensures minimal power loss during operation, thereby enhancing the overall efficiency of the system it is integrated into.
  • Thermal Management: The device is encapsulated in a highly thermally efficient package, which aids in superior heat dissipation, ensuring the diode operates within its optimal temperature range even under high current conditions.
  • Robust Construction: The DBD10G-TM-E is constructed with the durability to handle repetitive peak reverse voltage, contributing to its longevity and reliability in a variety of applications.

Applications

The DBD10G-TM-E is versatile and can be used in a wide array of applications, including:

  • Power Supply Units (PSUs)
  • Automotive Charging Systems
  • Power Management Solutions
  • DC-DC Converters
  • Telecommunication Equipment

Environmental and Quality Standards

ON Semiconductor ensures that the DBD10G-TM-E not only meets but exceeds environmental and quality standards. The device is compliant with RoHS directives, indicating that it is free from hazardous materials commonly found in electronic components. Furthermore, it is designed to meet the rigorous standards set by the industry, assuring customers of its quality and performance.

Conclusion

For engineers and designers looking for a diode that brings together efficiency, durability, and high performance, the DBD10G-TM-E from ON Semiconductor is an excellent choice. Its robust design and thermal efficiency make it suitable for a variety of applications, ensuring reliable operation even under challenging conditions. With ON Semiconductor's reputation for quality, the DBD10G-TM-E is a component that can be trusted for critical power management tasks.
