Products specifications Report Issue?

Win Source Part Number 3000001217-FDMF2011
Manufacturer onsemi
Category Integrated Circuits (ICs) Power Management (PMIC) Full Half-Bridge Drivers
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Last Time Buy
Base Product Number FDMF2011
Applications DC Motors, General Purpose
Interface PWM
Mounting Type Surface Mount
Package / Case 36-PowerWFQFN
Supplier Device Package 36-PQFN (7.5x6)
Ultra Librarian 3D Model Ultra Librarian FDMF2011 CAD Model

Description

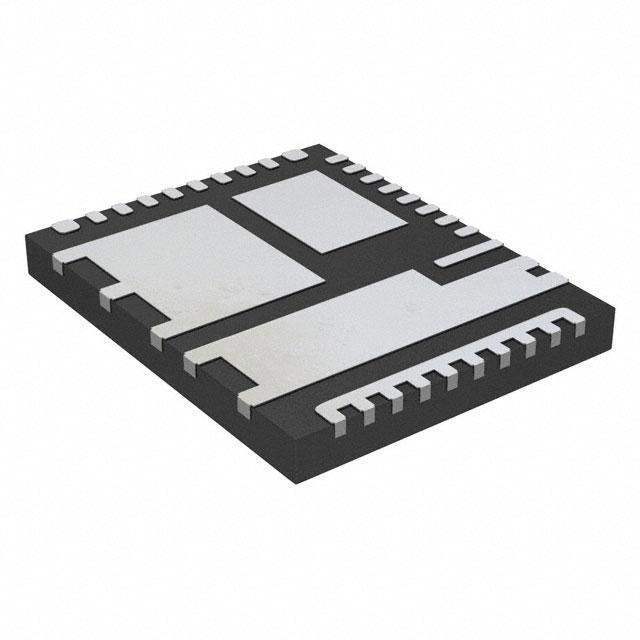

ON Semiconductor FDMF2011 Power Stage Module

The ON Semiconductor FDMF2011 is a high-performance, integrated power stage module designed to deliver exceptional efficiency and power density for a wide range of applications. This compact module combines a driver IC, two power MOSFETs, and a Schottky diode in an advanced, thermally efficient package, making it an ideal choice for synchronous buck applications including computing, telecom, and networking equipment.

Key Features

  • High-Efficiency Power Conversion: The FDMF2011 is engineered to provide high-efficiency power conversion, which helps to reduce energy consumption and heat generation in demanding applications.
  • Integrated Design: The module integrates a high-speed driver IC and two power MOSFETs, which simplifies the design and reduces the component count on the PCB.
  • Optimized for Synchronous Buck Converters: The FDMF2011 is specifically optimized for use in synchronous buck converter topologies, delivering excellent performance in this common configuration.
  • PowerTrench® MOSFET Technology: ON Semiconductor's proprietary PowerTrench MOSFET technology enables the FDMF2011 to achieve low gate charge and capacitance, which results in lower switching losses and improved total system efficiency.
  • High-Frequency Operation: The device supports high-frequency operation, which allows for the use of smaller passive components, thereby reducing the overall solution size and cost.
  • Thermal Performance: The FDMF2011 is housed in a thermally enhanced package, providing excellent heat dissipation and allowing for higher power operation.

Applications

  • Desktop and Laptop Computers
  • Servers and Networking Equipment
  • Telecommunications Infrastructure
  • Graphics Cards and Gaming Consoles
  • DC-DC Power Supplies

With its combination of integration, efficiency, and thermal performance, the ON Semiconductor FDMF2011 is an outstanding solution for designers looking to optimize their power systems. Whether it's for a high-performance computing platform or a space-constrained telecom application, the FDMF2011 provides a reliable and efficient power stage that can help to minimize design complexity and maximize system reliability.
