Same model may have multiple batches, images only for reference.

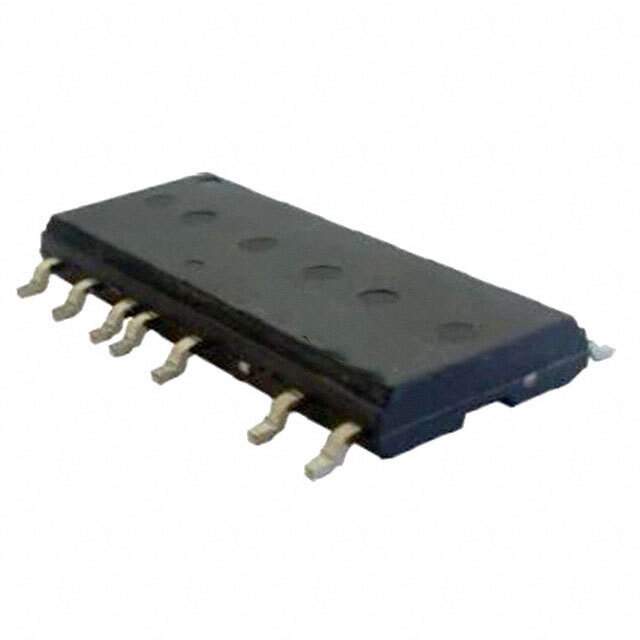

IRSM505-084PA Real Image
Same model may have multiple batches, images only for reference.

IRSM505-084PA

Part No IRSM505-084PA
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER 600V 23SOP / Half Bridge (3) Driver AC Motors UMOS 23-SOP
Datasheet
IRSM505-084PA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Infineon Technologies
Series µIPM™-DIP
Package Tube
Product Status Obsolete
Output Configuration Half Bridge (3)
Applications AC Motors
Interface Logic
Load Type Inductive
Technology UMOS
Rds On (Typ) 340mOhm
Current - Output / Channel 4.6A
Current - Peak Output 15A
Voltage - Supply 13.5V ~ 16.5V
Voltage - Load 200V (Max)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Features Bootstrap Circuit
Fault Protection UVLO
Mounting SMD (SMT)
Package / Case 32-PowerSMD Module, 23 Leads
Supplier Device Package 23-SOP
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names SP001539486,2156-IRSM505-084PA,INFINFIRSM505-084PA
Standard Package 240
Win Source Part Number 1009233-IRSM505-084PA
Ultra Librarian 3D Model Ultra Librarian IRSM505-084PA CAD Model

Description

The IRSM505-084PA is a full, half-bridge driver integrated circuit from Infineon Technologies that features a 32-PowerSMD module, 23 leads package.

  • Application: AC motors
  • Current Output/Channel: 4.6A
  • Voltage Load (Max): 200V
  • Fault Protection: UVLO
  • Output Configuration: Half Bridge (3)
  • Peak Output Current: 15A
  • On-State Resistance: 340mOhm
  • Temperature Range: -40°C to 150°C
  • MSL Level: 3 (168 hours)
  • Package: 23-SOP
  • Ideal Applications: Power supplies, motor control, and lighting.
