Products specifications

Category Isolators - Isolators - Gate Drivers
Mfr ON Semiconductor
Package Tube
Product Status Active
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 4243Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 500ns, 500ns
Pulse Width Distortion (Max) 300ns
Rise / Fall Time (Typ) 34ns, 34ns
Current - Output High, Low 2.5A, 2.5A
Current - Peak Output 3A
Voltage - Output Supply 15V ~ 30V
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SO
Approval Agency UL
Base Product Number FOD831
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 131928-FOD8316
Ultra Librarian 3D Model Ultra Librarian FOD8316 CAD Model

Description

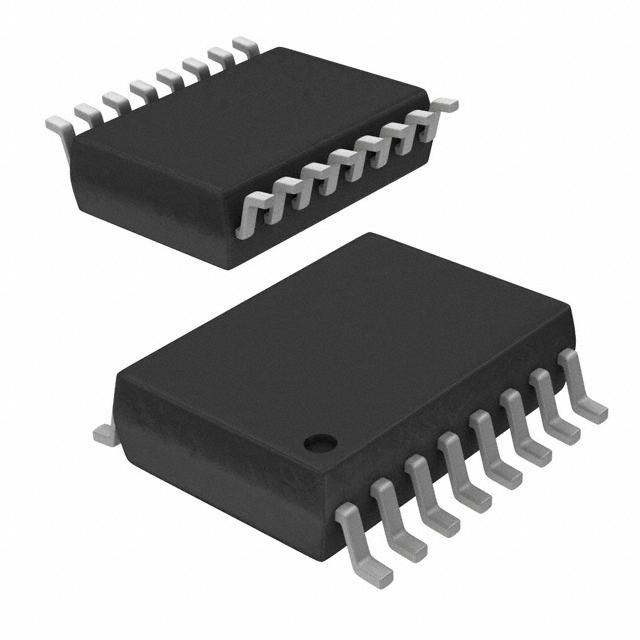

Overview of ON Semiconductor FOD8316

The ON Semiconductor FOD8316 is a highly integrated Gate Drive Optocoupler designed to drive IGBTs and MOSFETs in various applications. This advanced optocoupler combines a high-speed GaAlAs light-emitting diode (LED) with an integrated high-gain photo detector. The FOD8316 provides electrical isolation between the input signal and output power devices, ensuring that high-voltage spikes and surges on the output side do not affect the low-voltage control side.

Key Features

  • High Isolation Voltage: The FOD8316 offers a robust isolation voltage of 5kVrms, making it suitable for high-voltage applications and providing safety for the control circuitry.
  • High-Speed Operation: With a typical propagation delay of 500ns and a maximum of 700ns, this optocoupler is capable of high-speed operation, essential for efficient switching and accurate control of power devices.
  • Integrated Active Miller Clamp: The active Miller clamp feature prevents Miller-induced false turn-ons in IGBTs, enhancing the reliability and performance of the overall system.
  • Under Voltage Lock-Out (UVLO): The UVLO feature ensures that the gate driver is operational only when the supply voltage is sufficient, thus protecting the power devices from insufficient gate voltage.
  • Wide Operating Temperature Range: The FOD8316 operates within a temperature range of -40°C to +100°C, suitable for industrial environments and demanding conditions.
  • CMOS/TTL Compatible: The input of the FOD8316 is compatible with CMOS and TTL logic levels, making it easy to interface with microcontrollers and other control circuitry without additional level shifting.

Applications

The FOD8316 is ideal for driving power devices in a variety of applications, including:

  • Industrial inverters
  • AC and brushless DC motor drives
  • Renewable energy inverters, such as solar and wind power systems
  • Uninterruptible power supplies (UPS)
  • Welding equipment

Overall, the ON Semiconductor FOD8316 Gate Drive Optocoupler is a versatile and reliable solution for designers looking to improve the efficiency, performance, and reliability of their power control systems. Its integrated features and robust design make it an excellent choice for a wide range of high-power and high-voltage applications.
