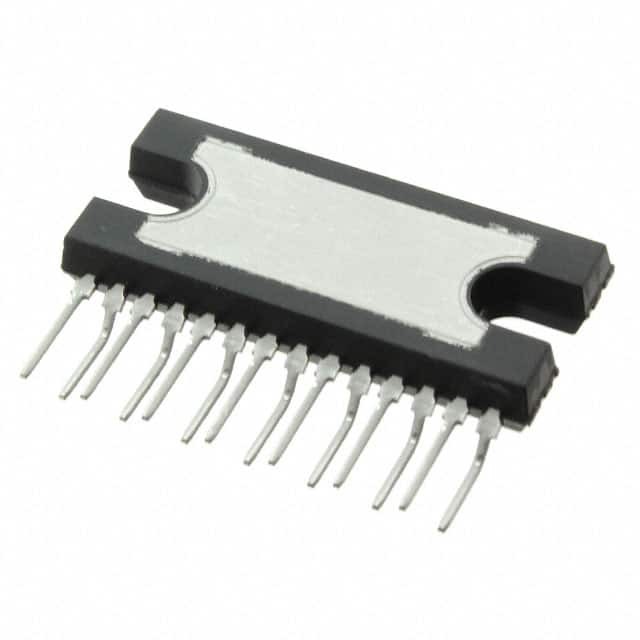

Products specifications

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr onsemi
Package Tape & Box (TB)
Product Status Obsolete
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface PWM
Technology Bipolar
Applications General Purpose
Current - Output 1.5A
Voltage - Supply 3V ~ 5.25V
Voltage - Load 8V ~ 28V
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 14-SSIP Exposed Tab, Formed Leads
Supplier Device Package 14-SIPHZ
Base Product Number LB1165
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names LB11650E
Standard Package 20
Win Source Part Number 1068760-LB11650-E
Ultra Librarian 3D Model Ultra Librarian LB11650-E CAD Model

Description

The LB11650-E from ON Semiconductor is a highly integrated and efficient solution for motor control applications. This versatile component is designed to drive a three-phase brushless DC motor, a vital element in modern electronic devices where reliable and efficient motor operation is a necessity.

Key Features

  • Three-Phase Brushless Motor Driver: The LB11650-E is capable of driving a three-phase motor, which is essential for applications requiring smooth operation and high efficiency.
  • Integrated Control Functions: It comes equipped with various control functions, such as speed control and braking, which are essential for precision motor management.
  • High Voltage Operation: This motor driver operates at high voltages, making it suitable for a wide range of industrial and consumer applications.
  • Low Power Consumption: The device is designed for low power consumption, which helps in reducing the overall energy cost and is beneficial for battery-powered applications.

Applications

The LB11650-E motor driver is ideal for a variety of applications where efficient and reliable motor control is crucial. These include:

  • Office automation machines
  • Home appliances
  • Cooling fans
  • Electrically driven power steering
  • Automotive applications

Technical Specifications

ON Semiconductor's LB11650-E boasts a range of technical specifications that make it a top choice for motor control. Some of these specifications include:

  • Supply Voltage Range: Suitable for various supply voltages, accommodating a broad spectrum of applications.
  • Output Current: Capable of delivering the current necessary for driving motors in multiple applications.
  • Protection Features: Includes overcurrent, thermal shutdown, and under-voltage lockout protection to ensure the longevity and safety of both the motor and the driver.

Quality and Reliability

With ON Semiconductor's commitment to quality, the LB11650-E motor driver is manufactured to meet high standards of performance and reliability. This ensures that the product can withstand the rigors of daily use in industrial and consumer applications.
