Products specifications

Categories Integrated Circuits
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Motor Type - AC, DC Brushless DC (BLDC)
Purpose Controller - Commutation, Direction Management
Technology Bipolar
Applications General Purpose
Supply Voltage - Operating 4.5 V to 5.5 V, 8 V to 17 V
Temperature Range - Operating -20°C to 100°C (TA)
Mounting SMD (SMT)
Case / Package 30-SSOP
Win Source Part Number 205973-LB11696V-MPB-E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LB11696V-MPB-E CAD Model

Description

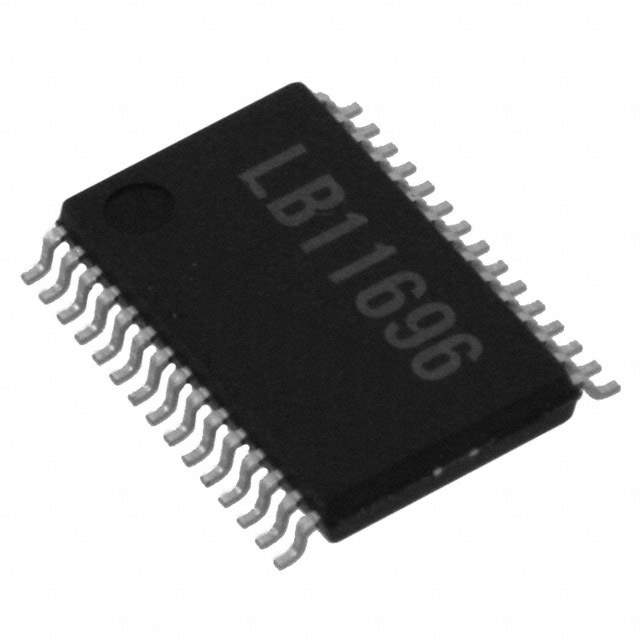

The LB11696V-MPB-E from ON Semiconductor is a high-performance, three-phase brushless motor driver designed for a wide array of applications that require precise motor control. This integrated circuit is well-suited for use in office automation machines, home appliances, and cooling fans, among others. Its robust design ensures reliable operation even in the most demanding situations.

Key Features

  • Three-Phase Brushless Motor Control: The LB11696V-MPB-E is capable of driving three-phase brushless motors, providing smooth and efficient operation.
  • Integrated Hall Sensor Amplifiers: This driver comes with built-in Hall sensor amplifiers, which eliminates the need for external components and simplifies the circuit design.
  • Forward/Reverse Rotation Control: Users can easily control the direction of the motor, allowing for versatile implementation in various applications.
  • Low Power Consumption: Designed with energy efficiency in mind, the LB11696V-MPB-E helps reduce power consumption, making it an eco-friendly choice for power-sensitive designs.
  • Lock Detection and Automatic Restart Function: The device includes safety features that detect when the motor is locked and automatically attempt to restart it, ensuring continuous operation.
  • Soft Switching Function: To reduce noise and electromagnetic interference (EMI), the LB11696V-MPB-E incorporates a soft switching function that moderates the operation of the motor.

Applications

The LB11696V-MPB-E is versatile and can be used in a variety of applications, including but not limited to:

  • Office Automation Equipment (Printers, Copiers, Scanners)
  • Home Appliances (Air Conditioners, Refrigerators, Washing Machines)
  • Cooling Fans (Computer CPU Fans, Ventilation Fans)

Technical Specifications

The LB11696V-MPB-E operates over a wide voltage range and offers a comprehensive set of protections to ensure the longevity and reliability of the application it is used in. For detailed technical specifications, refer to the official datasheet provided by ON Semiconductor.

With its advanced features and reliable performance, the LB11696V-MPB-E motor driver from ON Semiconductor is an excellent choice for designers looking to implement a three-phase brushless motor in their next project.
