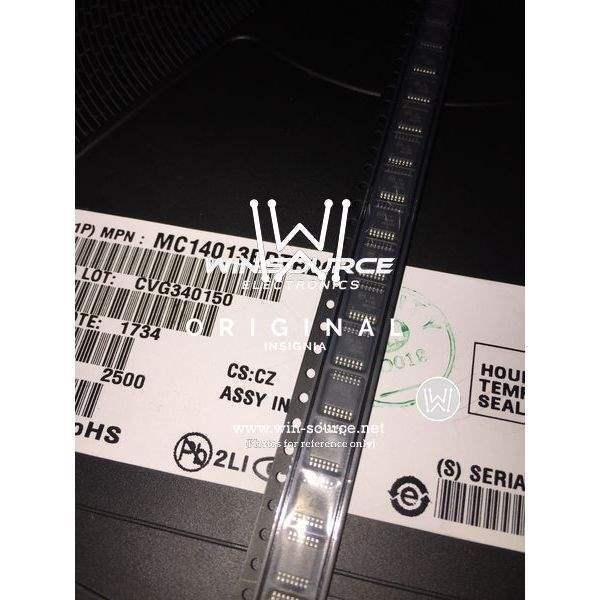

ON Semiconductor MC14013BDTR2 Dual Type D Flip-Flop

The MC14013BDTR2 is a high-performance, dual type D flip-flop integrated circuit from ON Semiconductor. This versatile component is widely used in digital electronics for its reliability and flexibility in various applications such as data storage, data transfer, frequency division, and counters.

Key Features:

• Configuration: The device contains two independent D flip-flops with individual data, set, reset, and clock inputs.
• Logic Type: It operates on the positive edge trigger, ensuring precise control over data transfer and synchronization.
• Supply Voltage: It has a wide operating voltage range, typically from 3 V to 18 V, making it compatible with various logic levels and suitable for battery-operated devices.
• Output Current: The MC14013BDTR2 can source or sink up to 6.8 mA at 5 V, providing sufficient drive capability for most applications.
• Temperature Range: It is designed to operate over an industrial temperature range from -55°C to +125°C, ensuring reliability in harsh environments.
• Packaging: The device comes in a TSSOP-14 package, which is optimal for space-saving considerations in PCB design.
• Static Operation: The flip-flop maintains the last input data at its output until the next clock cycle, which is ideal for data retention.

Applications:

The MC14013BDTR2 is suitable for a wide range of applications, including:

• Memory registers and data storage
• Shift registers and data manipulation
• Frequency dividers and counters
• Control systems
• Timing circuits

Quality and Reliability:

ON Semiconductor is known for its commitment to quality, and the MC14013BDTR2 is no exception. It is manufactured to the highest standards to ensure consistent performance and longevity. This component is a reliable choice for designers looking for a dependable flip-flop solution for their digital systems.
