Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel package
Part Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 400V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Maximum) @ If 900mV @ 6A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 25μA @ 400V
Mounting Style Through Hole
Package Button, Axial
Manufacturer Package Microde Button
Operating Temperature - Junction -65°C ~ 175°C
Win Source Part Number 789384-MR754RL
Popularity Medium
Supply and Demand Status Limited
Family Name MR754
Introduction Date February 15, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life

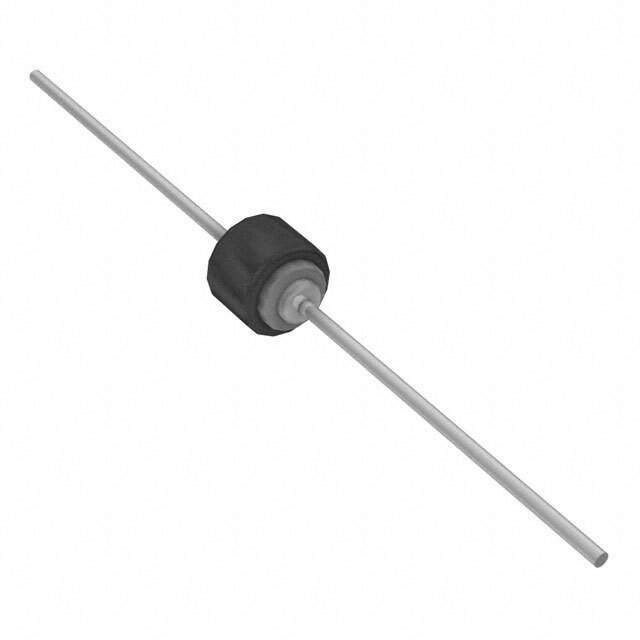

Ultra Librarian 3D Model Ultra Librarian MR754RL CAD Model

Description

The MR754RL from ON Semiconductor is a high-performance power rectifier diode designed for a variety of applications requiring efficient and reliable power conversion and management. This robust diode is well-suited for use in power supplies, inverters, converters, freewheeling diodes, and other power control circuits.

Key Features

  • High Current Capability: The MR754RL has a high forward current rating of 6A, making it capable of handling significant power requirements.
  • High Voltage Rating: With a peak repetitive reverse voltage (Vrrm) of 400V, it can be used in circuits with high voltage demands.
  • Low Forward Voltage Drop: The diode’s low forward voltage drop ensures higher efficiency by minimizing power loss during conduction.
  • Fast Switching Speed: The fast recovery time of this diode makes it suitable for high-frequency applications, reducing switching losses and improving overall performance.
  • Robust Construction: The MR754RL is encapsulated in a highly durable package, providing reliable performance in challenging environments.
  • Lead-Free: Compliant with RoHS standards, the diode is lead-free, making it an environmentally friendly choice for electronic designs.

Applications

The MR754RL is versatile and can be used in a wide range of electronic circuits. Some common applications include:

  • Switching power supplies
  • AC/DC converters
  • Motor controllers
  • Automotive charging systems
  • Energy management systems
  • Industrial power equipment

Reliability and Performance

ON Semiconductor is renowned for its commitment to quality and reliability, and the MR754RL is no exception. This diode is designed to perform consistently over its lifetime, even under demanding conditions. Its high current and voltage ratings, combined with fast switching capabilities, make it a preferred choice for engineers and designers looking for a reliable power rectification solution.

Whether you are developing power systems for consumer electronics, industrial machinery, or automotive applications, the MR754RL power rectifier diode from ON Semiconductor offers the performance and reliability you need to ensure your designs are efficient, durable, and compliant with current environmental standards.
