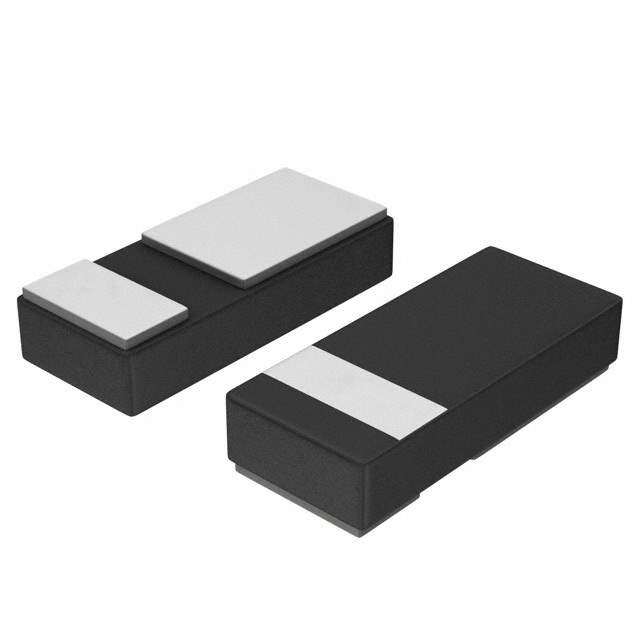

The NSR10F30NXT5G, from ON Semiconductor, is a state-of-the-art Schottky Barrier Diode designed for high-efficiency power management applications. This diode is part of ON Semiconductor's extensive portfolio of semiconductor components known for their reliability and performance.

Key Features

• Low Forward Voltage Drop: The device features a low forward voltage drop, which reduces power loss and improves efficiency, making it ideal for use in power-sensitive applications.
• High Current Capability: With a forward continuous current rating of 1 A, the NSR10F30NXT5G can handle high current applications with ease.
• Low Power Loss: Its power loss characteristics are optimized for low voltage applications, contributing to energy savings in the end product.
• Small Package Size: Housed in a compact SOD-523 package, the NSR10F30NXT5G saves valuable board space and is suitable for high-density circuit designs.
• High-Temperature Operation: The device is capable of operating at junction temperatures ranging from -55°C to +125°C, ensuring reliability across a wide range of environmental conditions.

Applications

The NSR10F30NXT5G is versatile and can be used in various applications, including:

• DC-DC converters
• Power supply circuits
• Reverse polarity protection
• Load switch
• Boost converters

Environmental and Quality Certifications

ON Semiconductor ensures that the NSR10F30NXT5G meets rigorous industry standards for quality and environmental sustainability:

• Pb-Free, Halogen-Free, and RoHS compliant
• Qualified to AEC-Q101 standards for automotive applications

Conclusion

The NSR10F30NXT5G Schottky Barrier Diode from ON Semiconductor is a high-performance component that offers energy efficiency, space-saving design, and robust operation in a wide range of temperatures and applications. Its compliance with environmental standards and automotive qualifications makes it a reliable choice for designers looking to enhance the performance of their power management systems.
