Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 3 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2.5 µs
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Capacitance @ Vr, F 60pF @ 4V, 1MHz
Mounting Type Surface Mount

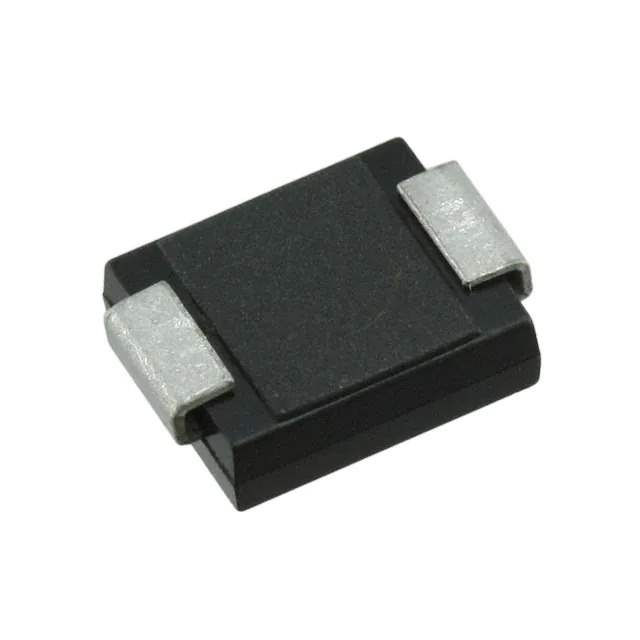

Package / Case DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number S3M
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 307066-S3M
Ultra Librarian 3D Model Ultra Librarian S3M CAD Model

Description

The ON Semiconductor S3M is a robust surface-mount rectifier diode, designed to provide users with a combination of high efficiency and reliability in a wide range of applications. This diode is part of the SxM series, where 'x' denotes the current rating of the device. The S3M specifically offers a 3A current rating, making it suitable for medium-power requirements.

Key Features

  • High Current Capability: With a forward current rating of 3A, the S3M is capable of handling moderate levels of current, making it ideal for a variety of power conversion applications.
  • High Surge Capability: The S3M can withstand high surge currents, providing excellent robustness and reliability during transient conditions.
  • Low Forward Voltage Drop: The low forward voltage drop (Vf) ensures high efficiency, which is critical in power-sensitive designs.
  • High Temperature Operation: The S3M can operate at junction temperatures up to 175°C, allowing for use in high-temperature environments.
  • Surface Mount Package: The device comes in a standard DO-214AB (SMC) package, which is suitable for automated assembly processes and helps in saving board space.

Applications

The S3M is versatile and can be used in a variety of applications, including:

  • Power supply units
  • Automotive systems
  • Battery chargers
  • DC-DC converters
  • Freewheeling diodes
  • Polarity protection devices

Reliability and Quality

ON Semiconductor is known for its commitment to quality, and the S3M is no exception. It is produced with high standards, ensuring that each diode meets the rigorous requirements of industrial and automotive grade applications. The device is also RoHS compliant, adhering to environmental regulations and minimizing the ecological footprint of electronic components.

Conclusion

In summary, the ON Semiconductor S3M surface-mount rectifier diode is a highly efficient, reliable, and versatile component that is well-suited for a wide range of applications where medium power handling and high performance are required. Its robust design and quality manufacturing make it a preferred choice for engineers and designers looking to enhance their power management systems.
