Products specifications

Category Circuit Protection>TVS - Diodes
Mfr onsemi
Series MiniMosorb™
Package Bulk
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 43V
Voltage - Breakdown (Min) 47.8V
Voltage - Clamping (Max) @ Ipp 69.4V
Current - Peak Pulse (10/1000µs) 7.2A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package Axial
Base Product Number SA43
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SA43AFS,SA43AFS-ND,SA43AFSINACTIVE,SA43AOS
Standard Package 1,000
Win Source Part Number 1090791-SA43A
Ultra Librarian 3D Model Ultra Librarian SA43A CAD Model

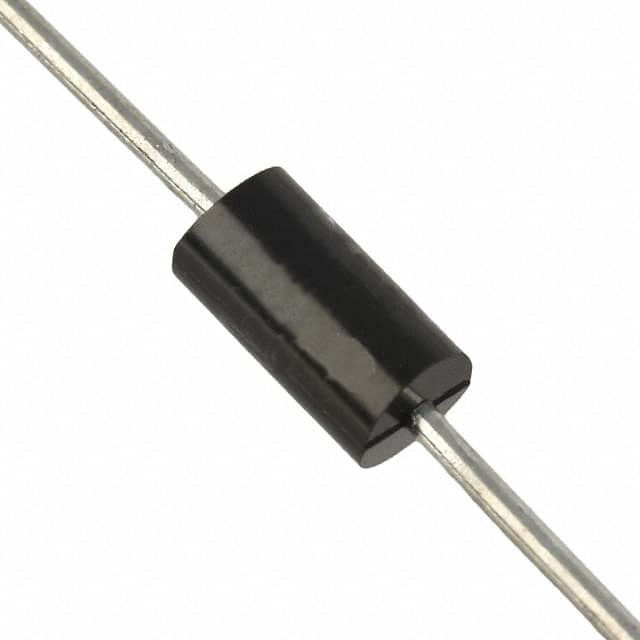

Description

The SA43A from ON Semiconductor is a robust transient voltage suppressor (TVS) diode, designed to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events. This TVS diode is a part of the SA series, known for its high surge capability and fast response time, making it an ideal choice for a variety of applications that require reliable protection against overvoltage conditions.

Key Features

  • Transient Protection: The SA43A can handle peak pulse power up to 500 Watts for 1ms, safeguarding electronic components from sudden surges.
  • Standoff Voltage: It has a standoff voltage of 43 Volts, providing a buffer zone where the diode remains non-conductive under normal operating conditions.
  • Breakdown Voltage: The device features a minimum breakdown voltage of 47.8 Volts, ensuring it clamps down on overvoltages before they can damage the circuit.
  • Low Leakage Current: With its low leakage current, the SA43A ensures minimal power loss when the device is in standby mode, contributing to energy efficiency.
  • Fast Response Time: Its response time to transient events is less than 1 picosecond, providing immediate protection against voltage spikes.
  • Operating Temperature Range: It operates over a wide temperature range from -55°C to +175°C, suitable for harsh environmental conditions.
  • Package: The SA43A comes in an axial-lead package, facilitating easy installation and integration into various circuit designs.

Applications

The SA43A is versatile and can be used in a wide range of applications, including:

  • Industrial systems
  • Communication systems
  • Automotive electronics
  • Power supply protection
  • Consumer electronics

With its combination of high surge capability, fast response time, and reliability across a broad temperature range, the SA43A from ON Semiconductor is an excellent choice for designers looking to enhance the durability and longevity of their electronic products.
