Products specifications

Category Circuit Protection>TVS - Diodes
Mfr onsemi
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 7.5V
Voltage - Breakdown (Min) 8.33V
Voltage - Clamping (Max) @ Ipp 12.9V
Current - Peak Pulse (10/1000µs) 38.8A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-15
Base Product Number SA7V5
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1298754-SA7V5CA
Ultra Librarian 3D Model Ultra Librarian SA7V5CA CAD Model

Description

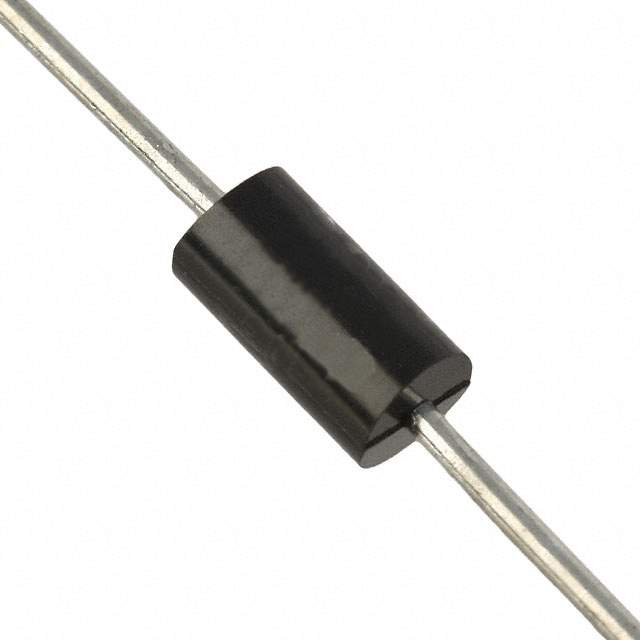

ON Semiconductor SA7V5CA Transient Voltage Suppressor

The ON Semiconductor SA7V5CA is a robust transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events. This high-quality component is engineered to safeguard circuits by clamping excessive voltages to a safe level, thus preventing potential damage to the device it is protecting.

The SA7V5CA is part of the SA series, which is known for its reliable performance in harsh environments. This TVS diode features a peak pulse power of 500W for 10/1000μs waveforms, making it capable of handling significant transient power surges. The device has a stand-off voltage of 7.5V, which is the maximum voltage that can be applied to the TVS without causing it to conduct in its avalanche breakdown mode.

With its bidirectional clamping characteristic, the SA7V5CA is able to provide symmetrical protection for AC signals or bipolar transients. This feature is particularly useful in applications where the polarity of the transient could be either positive or negative. The fast response time of this TVS diode ensures that it reacts almost instantaneously to transient events, offering immediate protection to the circuitry.

The SA7V5CA is housed in a compact DO-15 package, which is not only space-efficient but also allows for easy integration into a wide range of applications. It is commonly used in sensitive electronics such as computers, communication systems, industrial control equipment, and consumer electronics. The device is RoHS compliant, ensuring that it meets current environmental standards by being free of hazardous substances.

Key specifications of the SA7V5CA include its operating junction temperature range of -55°C to +150°C, which allows it to function reliably in extreme temperatures. Additionally, it has a low incremental surge resistance, which enhances its ability to handle high surge events without significant voltage overshoot.

Overall, the ON Semiconductor SA7V5CA TVS diode is an essential component for any design that requires protection against voltage transients. Its robust design, high surge capability, and fast response time make it an ideal choice for safeguarding sensitive electronic circuits.
