Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr ON Semiconductor
Package Tape & Reel
Product Status Obsolete
Diode Configuration 2 Independent
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) (per Diode) 2A
Voltage - Forward (Vf) (Max) @ If 400 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 20 ns
Current - Reverse Leakage @ Vr 1.25 mA @ 15 V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Type Surface Mount

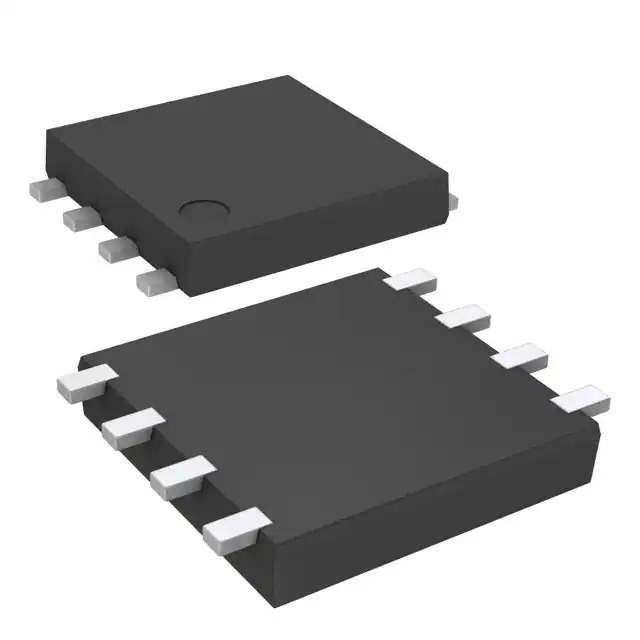

Package / Case 8-SMD, Flat Lead
Supplier Device Package 8-VEC
Base Product Number SBS811
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 664058-SBS811-TL-E
Ultra Librarian 3D Model Ultra Librarian SBS811-TL-E CAD Model

Description

The ON Semiconductor SBS811-TL-E is a state-of-the-art Schottky Barrier Diode designed for high-efficiency power management applications. This component is a testament to ON Semiconductor's commitment to providing energy-efficient solutions that meet the evolving needs of modern electronic devices.

Key Features

  • Low Forward Voltage Drop: The SBS811-TL-E boasts a low forward voltage drop, which enhances system efficiency by minimizing power loss during diode conduction.
  • High Current Capacity: This diode is capable of handling high current, making it ideal for use in power supply circuits and high-current applications.
  • Fast Switching Speed: With its fast switching capabilities, the SBS811-TL-E ensures minimal losses during the transition from ON to OFF states, which is critical for high-frequency power converters.
  • Low Power Loss: The device is optimized to reduce power loss, providing a more efficient solution for power management.
  • Small Package Size: The SBS811-TL-E comes in a compact package, saving valuable board space and making it suitable for space-constrained applications.

Applications

The versatile nature of the SBS811-TL-E makes it suitable for a wide range of applications, including:

  • DC-DC Converters
  • Power Supply Circuits
  • Automotive Applications
  • Portable Devices
  • High-Frequency Inverters

Product Specifications

The SBS811-TL-E is characterized by its robust specifications that ensure reliability and performance in demanding environments:

  • Voltage Rating: Optimized for low voltage applications.
  • Current Rating: Suitable for high current operations.
  • Operating Temperature Range: Capable of withstanding a wide range of temperatures, ensuring stability across various operating conditions.

In conclusion, the ON Semiconductor SBS811-TL-E is a high-performance Schottky Barrier Diode that offers efficiency, reliability, and space-saving benefits, making it an excellent choice for designers looking to optimize their power management systems.
