Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr onsemi
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 400 µA @ 50 V
Capacitance @ Vr, F 120pF @ 4V, 1MHz
Mounting SMD (SMT)

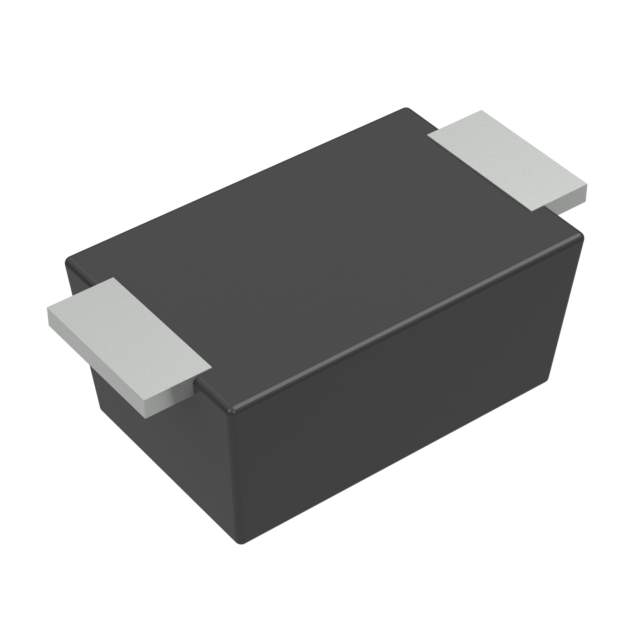

Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SS25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SS25FATR,SS25FACT,SS25FADKR
Standard Package 3,000
Win Source Part Number 1114598-SS25FA
Ultra Librarian 3D Model Ultra Librarian SS25FA CAD Model

Description

The ON Semiconductor SS25FA is a high-efficiency, metal-to-silicon power diode specifically designed to be utilized in low voltage, high-frequency inverters, free-wheeling, and polarity protection applications. This Schottky barrier rectifier is well-suited for products requiring efficient energy conversion and reliability.

Key Features

  • Low Forward Voltage Drop: The SS25FA offers a low forward voltage drop, which enhances system efficiency and reduces thermal issues, making it ideal for portable and energy-sensitive applications.
  • High Current Capability: With the ability to handle high surge currents, this component is capable of withstanding transient overloads, making it an excellent choice for power regulation circuits.
  • Low Power Loss: The high efficiency of the SS25FA minimizes power loss, thus improving the overall performance of the electronic system.
  • High Reliability: ON Semiconductor's commitment to quality ensures that the SS25FA Schottky barrier rectifier is a reliable component for long-term use.
  • Lead-Free: This product is environmentally friendly, as it is designed to meet the current RoHS directive, indicating that it is lead-free and safe for use in a wide range of electronics.

Applications

The versatility of the SS25FA makes it suitable for a wide array of applications, including:

  • Switching power supply
  • Converters
  • Free-wheeling diodes
  • Reverse battery protection
  • DC-to-DC converters
  • Automotive applications

Product Specifications

The SS25FA is encapsulated in an SMA package, which offers a compact footprint for designs where space is at a premium. It has a repetitive peak reverse voltage (VRRM) of 50V and a forward continuous current (IF) of 2A. The device also features a maximum junction temperature of 150°C, ensuring stable performance under a range of operating conditions.

Conclusion

ON Semiconductor's SS25FA Schottky barrier rectifier is an excellent choice for designers looking for a robust, efficient, and reliable component to enhance the performance of their power management systems. Its low forward voltage drop, high current capacity, and low power loss make it a key element in modern electronic applications.
