Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Package Tape & Reel
Product Status Not For New Designs
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 90 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 400 µA @ 90 V
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Operating Temperature - Junction -65°C ~ 125°C
Base Product Number SS29
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676320-SS29
Ultra Librarian 3D Model Ultra Librarian SS29 CAD Model

Description

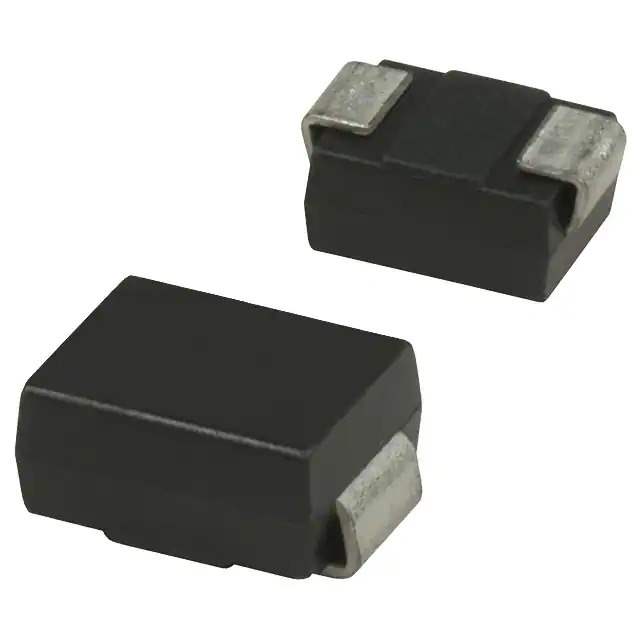

ON Semiconductor SS29 Schottky Barrier Rectifier Diode

The ON Semiconductor SS29 is a high-efficiency, metal-to-silicon power diode specifically designed to provide low forward voltage drop and minimal leakage current. This Schottky Barrier Rectifier Diode is a robust component that is ideal for a wide range of applications requiring fast switching and low power loss.

Key Features

  • Forward Continuous Current (IF): 2 A
  • Maximum Repetitive Reverse Voltage (VRRM): 90 V
  • Low Forward Voltage Drop (VF): Typically 0.82 V at IF = 2 A
  • Power Dissipation (PD): 1.25 W
  • Operating Junction Temperature Range: -55°C to +150°C
  • Storage Temperature Range: -55°C to +150°C
  • Package: Available in DO-214AA (SMB) package

Applications

The SS29 is suitable for a variety of applications that require efficient power management. It is commonly used in low voltage, high-frequency inverters, free-wheeling, and polarity protection applications. Its small footprint and high efficiency make it perfect for portable devices, power supply units, and automotive applications, contributing to energy savings and extended battery life.

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the SS29 is no exception. It is manufactured with the highest standards to ensure it meets the rigorous demands of industrial and commercial use. The device's robust construction is designed to withstand harsh environments while maintaining its electrical integrity.

Environmental Compliance

In line with ON Semiconductor's dedication to environmental stewardship, the SS29 complies with RoHS (Restriction of Hazardous Substances) directives. This ensures that it is free from harmful substances such as lead, mercury, and cadmium, making it a more environmentally friendly choice for electronic components.
