Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube
Transistor Type PNP
Current - Collector (Ic) (Maximum) 25A
Voltage - Collector Emitter Breakdown (Maximum) 100V
Vce Saturation (Maximum) at Ib, Ic 4V at 5A, 25A
Current - Collector Cutoff (Maximum) 1mA
DC Current Gain (hFE) (Minimum) at Ic, Vce 15 at 15A, 4V
Maximum Power 125W
Frequency - Transition 3MHz
Temperature Range - Operating -65°C ~ 150°C
Mounting Style Through Hole

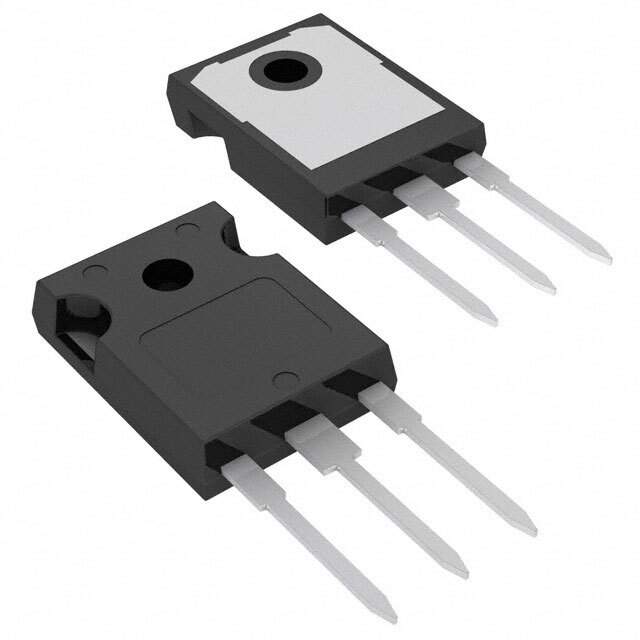

Manufacturer Package TO-247-3
Supplier Device Package TO-247
Family Part Number TIP36
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1267450-TIP36CG
Manufacturer Homepage www.onsemi.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TIP36CG CAD Model

Description

The TIP36CG is a high-power bipolar PNP transistor manufactured by ON Semiconductor, renowned for its reliability and performance in a wide range of electronic applications. This power transistor is designed to handle substantial current and voltage, making it an ideal component for power regulation and amplification tasks in various electronic circuits.

Key Features

  • High Voltage Tolerance: The TIP36CG is capable of withstanding voltages up to 100V, making it suitable for high voltage applications.
  • High Current Capacity: With a continuous collector current rating of up to 25A, this transistor can handle significant power loads without overheating or failing.
  • Low Saturation Voltage: The low collector-emitter saturation voltage ensures efficient operation with minimal power loss, which is critical for power-intensive applications.
  • Complementary NPN Transistor: The TIP36CG can be paired with its complementary NPN partner, the TIP35CG, for push-pull amplifier configurations, offering design flexibility.

Applications

The TIP36CG is versatile and can be used in a variety of applications, including:

  • Power supply regulators
  • Audio power amplifiers
  • Motor controllers
  • Switching circuits
  • Linear amplifiers

Product Specifications

Parameter Value Collector-Emitter Voltage (VCEO) 100V Collector Current (IC) 25A Power Dissipation (PD) 125W Operating Junction Temperature (TJ) -65 to 150°C Package TO-247

The ON Semiconductor TIP36CG is a robust and efficient solution for designers looking to incorporate a reliable PNP transistor into their high-power applications. Its combination of high voltage and current ratings with low saturation voltage makes it a go-to choice for engineers worldwide.
