Same model may have multiple batches, images only for reference.

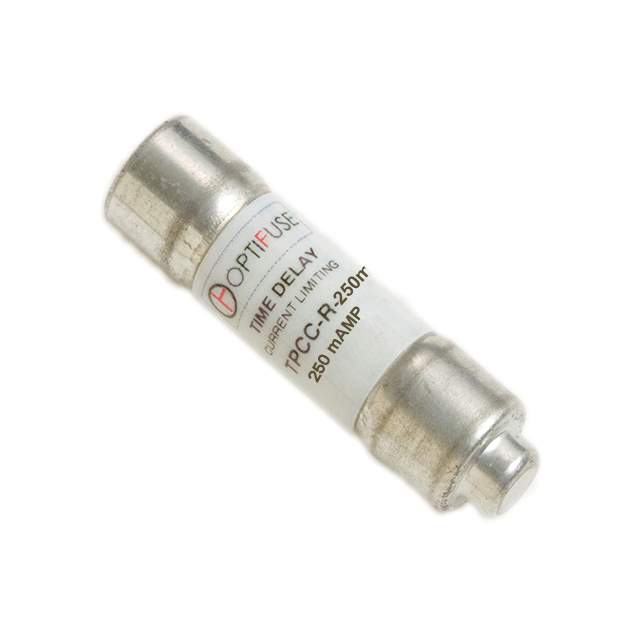

TPCC-R-250MA Real Image
Same model may have multiple batches, images only for reference.

TPCC-R-250MA

Part No TPCC-R-250MA
Manufacturer OptiFuse
Catalog Fuses
Description CLASS CC FUSE, TIME DELAY 250MA  /  250 mA 600 V AC 300 V DC Fuse Cartridge, Ceramic Holder 5AG, 10mm x 38mm (Midget)
Datasheet
TPCC-R-250MA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr OptiFuse
Series TPCC-R
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 250 mA
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Package / Case 5AG, 10mm x 38mm (Midget)
Breaking Capacity @ Rated Voltage 200kA AC, 100kA DC
Approval Agency CSA, UL
Dimension 0.409" Dia x 1.500" L (10.40mm x 38.10mm)
Base Product Number TPCC-R
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8535.10.0040
Other Names 2298-TPCC-R-250MA
Standard Package 1
Win Source Part Number 1133316-TPCC-R-250MA
Ultra Librarian 3D Model Ultra Librarian TPCC-R-250MA CAD Model

Description

The TPCC-R-250MA is a slow blow cartridge ceramic fuse electronic component manufactured by OptiFuse. The TPCC-R-250MA is manufactured by OptiFuse.

  • Current Rating: 250mA
  • Voltage Rating: AC 600V and DC 300V
  • Breaking Capacity @ Rated Voltage: 200kA AC and 100kA DC
  • Dimension: 0.409" Dia x 1.500" L (10.40mm x 38.10mm)
  • Package/Case: 5AG, 10mm x 38mm (Midget)
  • ECCN: EAR99
  • Approval Agency: CSA, UL
