Same model may have multiple batches, images only for reference.

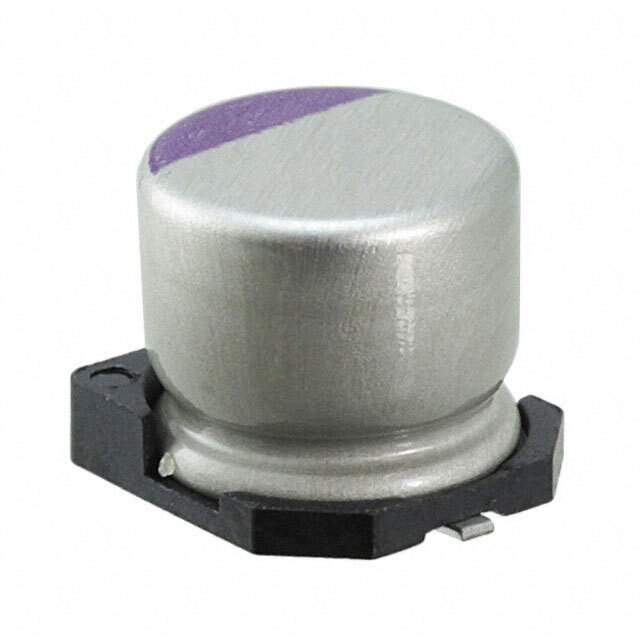

20SVP10M Real Image
Same model may have multiple batches, images only for reference.

20SVP10M

Part No 20SVP10M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 10UF 20% 20V SMD  /  10 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 120mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVP
Package Tape & Reel
Type Polymer
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 120mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 51 mA @ 120 Hz
Ripple Current @ High Frequency 1.02 A @ 100 kHz
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 20SVP
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16490DKR,P16490TR,P16490CT
Standard Package 1,500
Win Source Part Number 1035694-20SVP10M
Ultra Librarian 3D Model Ultra Librarian 20SVP10M CAD Model

Description

The Panasonic Electronic Components 1035694-20SVP10M is an aluminum-polymer capacitor that has a capacitance of 10 µF and a voltage rating of 20 V.

  • Component: Aluminum-Polymer Capacitor
  • Capacitance: 10 µF
  • Voltage Rating: 20 V
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Package: Radial, Can - SMD
  • Mounting: SMD (SMT)
  • Height (Seated): 0.236" (6.00mm)
  • Dimension: 0.197" Dia (5.00mm)
  • Win Source Part Number: 1035694-20SVP10M
  • Packaging: Tape & Reel
  • Standard Package: 1,500
