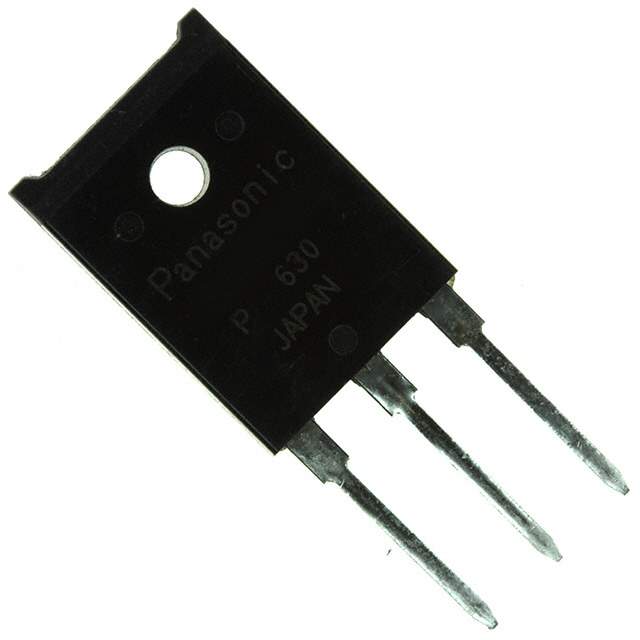

The 2SD1705 is a silicon NPN epitaxial planar transistor manufactured by Panasonic. It is designed for high-current switching applications.

Applications

• Power switching circuits
• Motor control circuits
• DC-DC converters
• Inverter circuits
• General-purpose amplifier applications

Features

• High Collector Current: The 2SD1705 is capable of handling collector currents up to 3A.
• Low Saturation Voltage: Offers a low saturation voltage, minimizing power dissipation during switching.
• High fT: Exhibits a high transition frequency for fast switching speeds.
• Excellent hFE Linearity: Provides stable current gain over a wide range of collector currents.
• High Collector-Emitter Voltage: Can withstand a high collector-emitter voltage, enhancing reliability.

Benefits

• Efficient Switching: Low saturation voltage ensures efficient power switching.
• High Reliability: Designed for robust performance in demanding applications.
• Compact Design: Allows for smaller and more efficient circuit designs.
• Improved Performance: High transition frequency enables faster switching speeds and improved circuit performance.
• Versatile Application: Suitable for a wide range of power switching and amplification applications.

Additional Details

The 2SD1705 typically comes in a TO-126 package. Key specifications include a collector-emitter voltage (VCEO) of 60V, a collector current (IC) of 3A, and a power dissipation (PC) of 10W. The operating junction temperature ranges from -55°C to +150°C. It's also designed to have very low VCE(sat) at higher currents which will reduce wasted power and improve device reliability.
