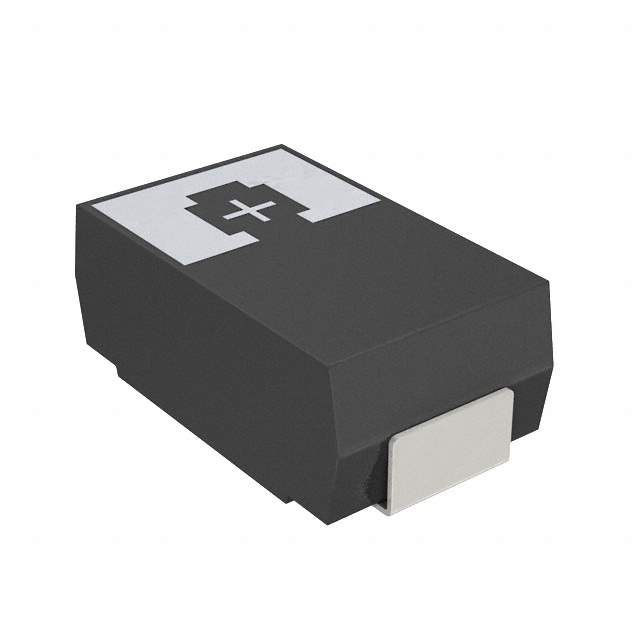

6TAB47M Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Packaging Reel
Capacitance 47μF
Tolerance ±20%
Voltage - Rated 6.3V
Type Molded
ESR (Equivalent Series Resistance) 70mOhm at 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime at Temp. 1000 Hrs at 105°C
Mounting Style SMD
Manufacturer Package 1411 (3528 Metric)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Features General Purpose
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809922-6TAB47M
Ultra Librarian 3D Model Ultra Librarian 6TAB47M CAD Model

Description

The Panasonic Electronic Components 809922-6TAB47M is a molded type SMD capacitor with a capacitance of 47μF and a tolerance of ±20%.

  • Rated Voltage: 6.3V
  • ESR: 70mOhm @ 100kHz
  • Operating Temperature: -55°C to 105°C
  • Dimension: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Package: 2,000
  • MSL Level: 3 (168 Hours)
  • Lifetime @ Temp: 1000 Hrs @ 105°C
