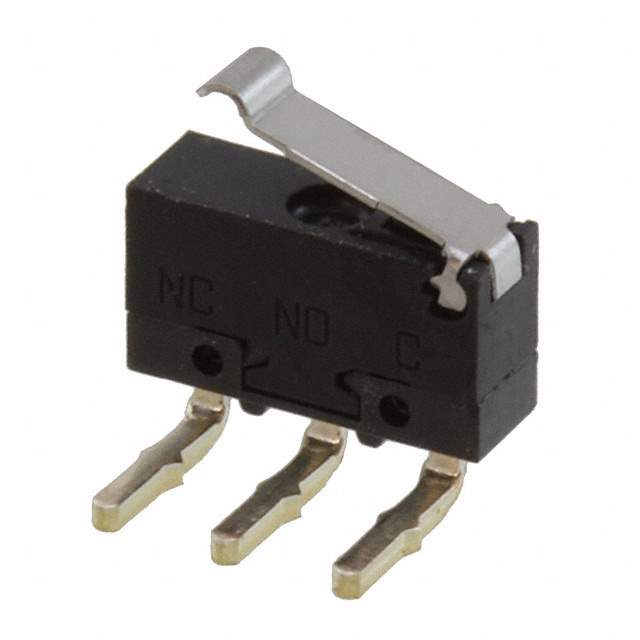

Same model may have multiple batches, images only for reference.

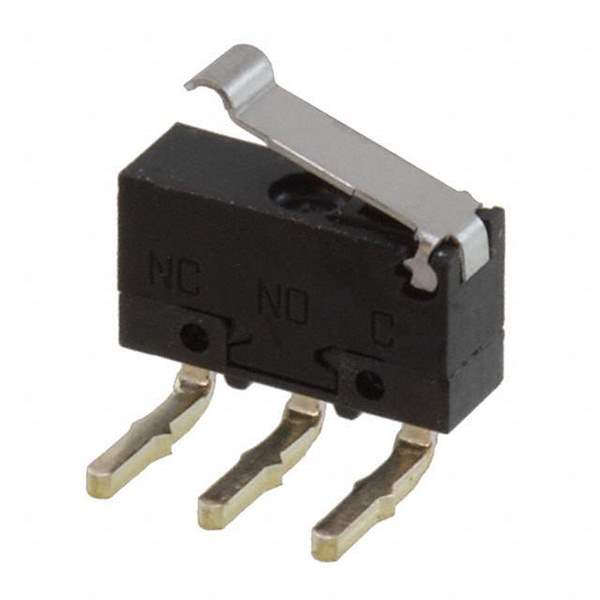

AV4544 Real Image
Same model may have multiple batches, images only for reference.

AV4544

Part No AV4544
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 500MA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating 500mA (DC)
Voltage Rating - DC 30V
Actuator Type Lever, Simulated Roller
Mounting Through Hole, Right Angle
Termination Style PC Pin
Operating Force, Torque 29gf
Pretravel 0.087" (2.2mm)
Differential Travel 0.027" (0.7mm)
Overtravel 0.011" (0.3mm)
Operating Position 0.240" (6.1mm)
Mechanical Life 300,000 Cycles
Electrical Life 20,000 Cycles
Temperature Range - Operating -25°C to 80°C
Win Source Part Number 125851-AV4544
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian AV4544 CAD Model

Description

Overview

The AV4544 is an advanced low-power dual-channel operational amplifier designed for a wide range of signal processing applications. It offers superior accuracy and bandwidth performance.

Applications

  • Analog signal processing
  • Audio preamplifiers
  • Instrumentation amplifiers
  • Communication devices
  • Sensor interfacing

Features and Benefits

  • Wide bandwidth of 10 MHz for enhanced signal integrity
  • Low input bias current for precision amplifying
  • Rail-to-rail output swing for maximum signal range
  • Minimal distortion and noise interference
  • Highly reliable in various environmental conditions

Additional Details

The AV4544 is ideal for applications requiring precise signal amplification and minimal power consumption, making it an excellent choice for sensitive and high-accuracy electronic designs.
