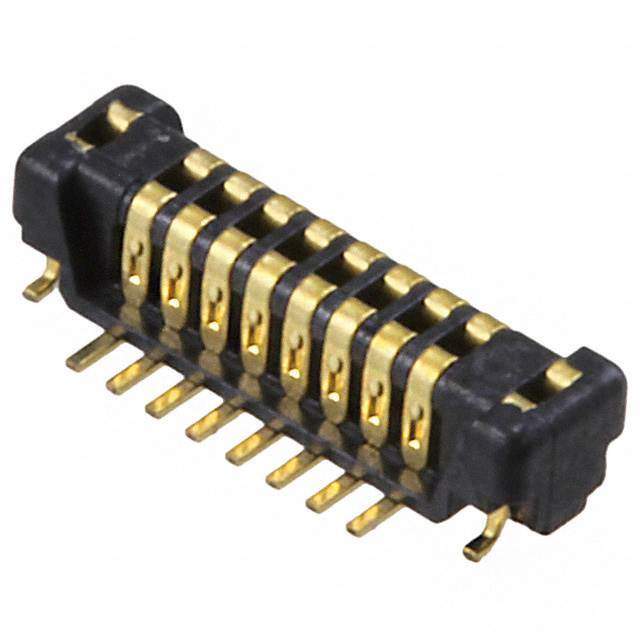

AXT416124 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 16
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm, 2.5mm
Height Above Board 0.049" (1.25mm)
Win Source Part Number 1021101-AXT416124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT416124 CAD Model

Description

The Panasonic Electric Works 1021101-AXT416124 is a 16-position header connector with a pitch of 0.016" (0.40mm).

  • Positions: 16
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention, Center Strip Contacts
  • Contact Plating: Gold
  • Contact Finish Thickness: -
  • Mated Stacking Heights: 1.5mm and 2.5mm
  • Mounting: Surface Mount
  • Supply and Demand Status: Balanced
  • Package Quantity: 3k pcs
