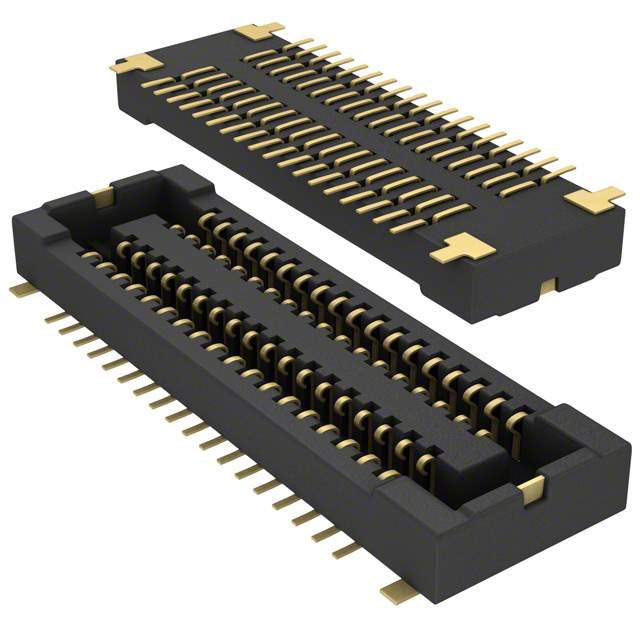

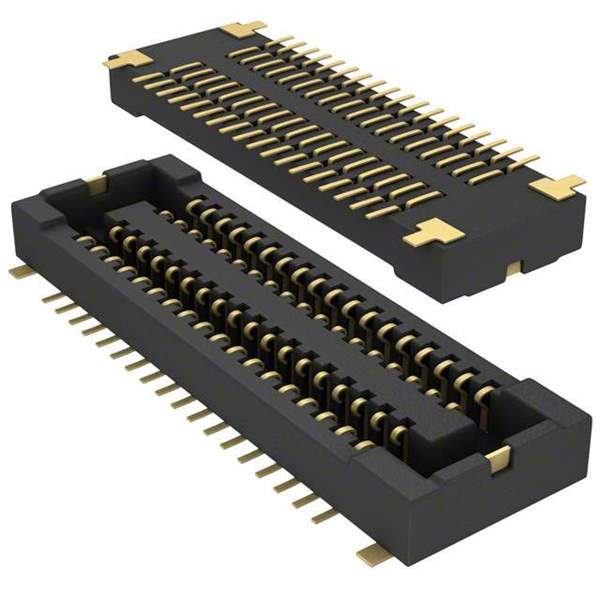

AXT536124 Real Image
Same model may have multiple batches, images only for reference.

AXT536124

Part No AXT536124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET .4MM 36POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Socket, Outer Shroud Contacts
Number of Positions 36
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Win Source Part Number 1021121-AXT536124
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AXT536124 CAD Model

Description

Panasonic Electric Works AXT536124 is a socket, outer shroud contacts, and 36 positions connector type with gold contact finish.

  • Connector Type: Socket, outer shroud contacts, and 36 positions
  • Contact Finish: Gold
  • Package: Reel - TR with 3k pcs per package
  • Pitch: 0.016" (0.40mm)
  • Height Above Board: 0.038" (0.97mm)
  • Supply and demand status: Balanced
  • Status: Active
