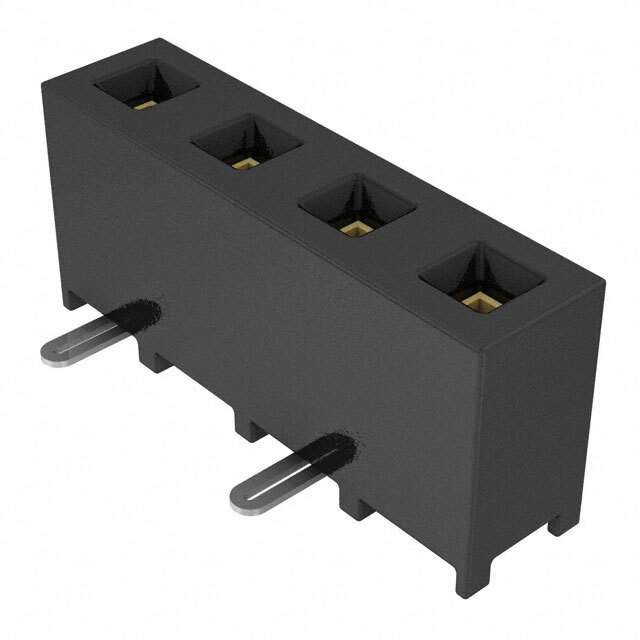

SMM-104-02-F-S Real Image
Same model may have multiple batches, images only for reference.

SMM-104-02-F-S

Part No SMM-104-02-F-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 2MM 4POS SMD / Conn Socket Strip SKT 4 POS 2mm Solder ST Top Entry SMD TIGER EYE™ Tube
Datasheet
SMM-104-02-F-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series Tiger Eye SMM
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 1
Mounting SMD
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3μin (0.08μm)
Insulation Color Black
Insulation Height 0.140" (3.56mm)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 3.2A per Contact
Voltage Rating 350VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Win Source Part Number 794780-SMM-104-02-F-S
Popularity Medium
Supply and Demand Status Balance
Family Name SMM
Introduction Date October 07, 2003
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SMM-104-02-F-S CAD Model

Description

The Samtec Inc. Tiger Eye SMM series is a board-to-board or cable connector type with a receptacle connector.

  • Positions: 4 (single row)
  • Fastening Type: Push-Pull
  • Pitch-Mating: 0.079 inches (2.00mm)
  • Contact Material: Beryllium Copper
  • Contact Finish-Mating: Gold (3μin (0.08μm) thickness)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 350VAC
  • Current Rating: 3.2A per contact
  • Insulation Color: Black
  • Insulation Height: 0.140 inches (3.56mm)
  • Halogen-Free: Compliant
  • Estimated EOL Date: 2027
  • Packaging: Tube
