Same model may have multiple batches, images only for reference.

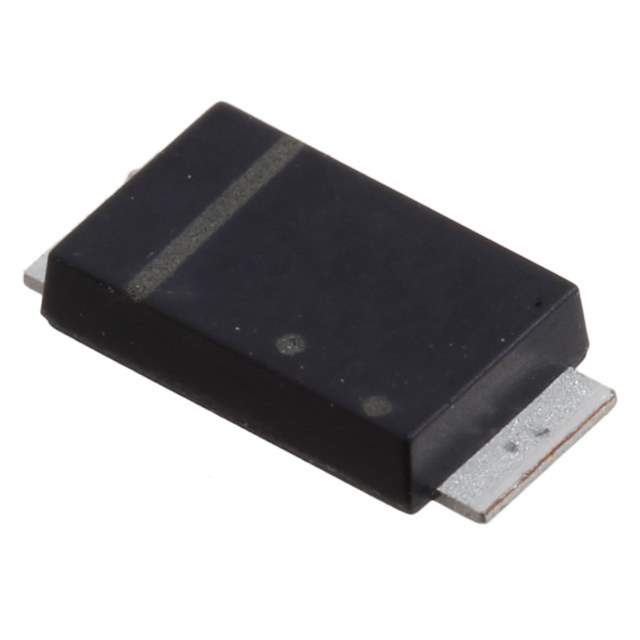

DA24F4100L Real Image
Same model may have multiple batches, images only for reference.

DA24F4100L

Part No DA24F4100L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 1A TMINIP2 / Diode Standard 400 V 1A Surface Mount TMiniP2-F2-B
Datasheet
DA24F4100L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panasonic Electronic Components
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 45 ns
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Capacitance @ Vr, F 50pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-128
Supplier Device Package TMiniP2-F2-B
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number DA24F41
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names P15186CT,P15186DKR,P15186TR
Standard Package 3,000
Win Source Part Number 977365-DA24F4100L
Ultra Librarian 3D Model Ultra Librarian DA24F4100L CAD Model

Description

The 977365-DA24F4100L is a fast recovery diode that is designed for use in rectifier applications manufactured by Panasonic Electronic Components.

  • Voltage Rating: 400 V
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 1.2 V @ 1 A
  • Reverse Recovery Time: 45 ns
  • Package: SOD-128
  • Supplied: Tape and Reel
  • Temperature Range: -40°C to 150°C
  • Alternate Part Numbers: P15186CT, P15186DKR, and P15186TR
