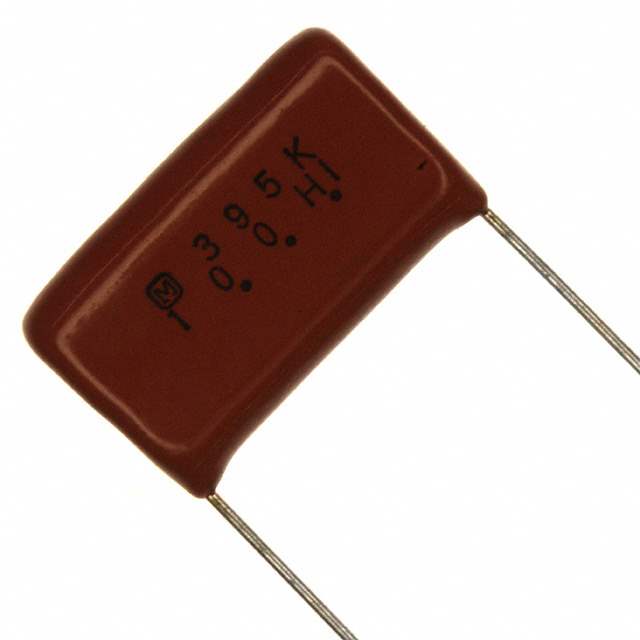

Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Active
Capacitance 1.8μF
Tolerance ±10%
Voltage Rating - DC 250V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C to 105°C
Mounting Through Hole
Dimension 1.024" L x 0.295" W (26.00mm x 7.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications General Purpose
Win Source Part Number 102701-ECQ-E2185KF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ECQ-E2185KF CAD Model

Description

The ECQ-E2185KF from Panasonic offers superior reliability and performance, making it an ideal choice for demanding applications. Its construction ensures low losses and excellent stability over a wide temperature range.

Features and Benefits

  • Capacitance: 0.18uF
  • Voltage Rating: 630V
  • Temperature Range: -40°C to 105°C
  • High dielectric strength
  • Long life span

Applications

  • Audio systems
  • Induction heating devices
  • Switching circuits
  • Industrial control systems

The ECQ-E2185KF is engineered to deliver consistent performance across a range of temperatures and conditions, providing peace of mind for engineers and designers alike.
