Features 15 kOhms Chip Resistor
Manufacturer Panasonic
Series ERJ-8G
Package Reel - TR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number P15KECT, ERJ-8GEYJ153S, ERJ-8GCYJ153V, ERJ8GEYJ153S, P15KECT-NDR, ERJ-8GEYJ153, ERJ8GEYJ153, ERJ8GEYJ153V, P15KETR, P15KEDKR-NDR, P15KTR, ERJ8GCYJ153V, P15KETR-NDR, P15KEDKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 845216-ERJ-8GEYJ153V
Ultra Librarian 3D Model Ultra Librarian ERJ-8GEYJ153V CAD Model

Description

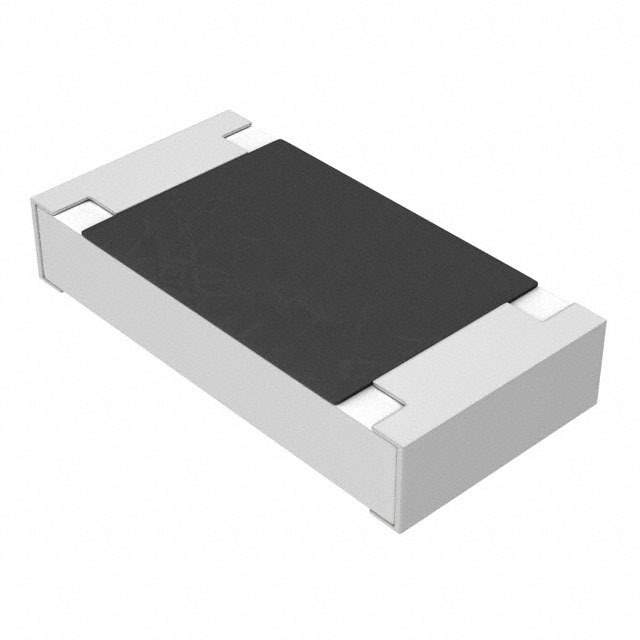

The ERJ-8GEYJ153V is a chip resistor manufactured by Panasonic, designed for surface mount technology (SMT) applications. These resistors are known for their reliability and consistent performance in various electronic circuits. The 'ERJ' series represents Panasonic's commitment to producing high-quality, stable resistive components.

Applications

  • Consumer electronics (e.g., smartphones, tablets)
  • Industrial control systems
  • Automotive electronics (e.g., ECUs, sensors)
  • Power supplies and voltage regulators
  • Measuring and testing equipment

Features

  • Surface mount design for automated assembly
  • Thick film resistive element for stability
  • Compact 1206 package size
  • High reliability and long operational life
  • RoHS compliant, ensuring environmental friendliness

Benefits

  • Enables high-density PCB layouts due to its small footprint.
  • Provides stable resistance values across a wide temperature range.
  • Reduces manufacturing costs with efficient SMT assembly.
  • Contributes to the overall reliability of electronic devices.
  • Meets environmental regulations for hazardous substances.

Technical Specifications

The ERJ-8GEYJ153V features a resistance of 15 kOhms. It has a power rating of 0.25W and a tolerance of ±5%. The temperature coefficient of resistance (TCR) is ±200 ppm/°C. It is available in a 1206 package. This resistor is designed to operate within a temperature range of -55°C to +155°C. These surface mount resistors are ideal for applications needing stable resistance in fluctuating temperatures.

These resistors are commonly used in circuits requiring a 15 kOhm resistance for current limiting, voltage division, or pull-up/pull-down configurations. Their 5% tolerance is suitable for general-purpose applications where high precision is not critical. The 1206 package size allows for efficient use of board space in compact electronic devices. Panasonic's use of thick film technology ensures that these resistors maintain stable performance over extended periods, even under demanding operating conditions.
