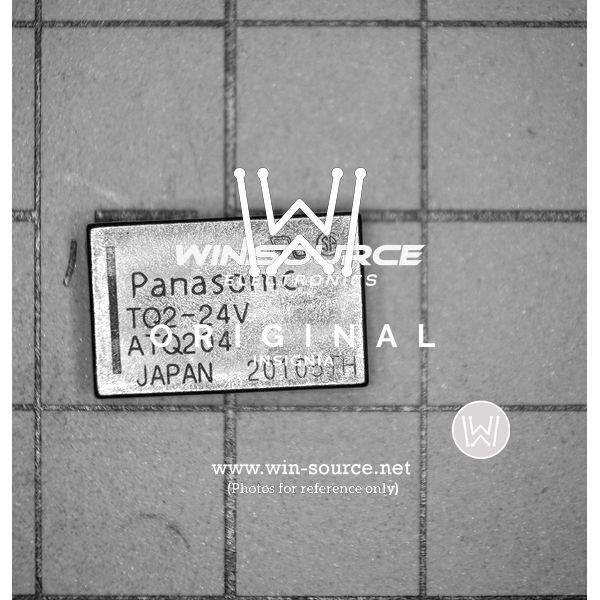

TQ2-24V Real Image TQ2-24V real image9310
Same model may have multiple batches, images only for reference.
TQ2-24V Real Image TQ2-24V real image9310
TQ2-24V Real Image TQ2-24V real image9310
Same model may have multiple batches, images only for reference.

TQ2-24V

Part No TQ2-24V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 1A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1A
Switching Voltage 125VAC, 110VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 3ms
Release Time 3ms
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 090169-TQ2-24V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Communications & Networking, Test & Measurement
Family Name TQ
Introduction Date December 01, 2003
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2022
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian TQ2-24V CAD Model

Description

Panasonic Electric Works presents a telecom relay with the part number 090169-TQ2-24V.

  • Contact Form: DPDT (2 Form C)
  • Mounting Style: Through-Hole
  • Packaging: Tube/Rail
  • Termination Style: PC pin
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3mA
  • Contact Rating (Current): 1A
  • Switching Voltage: 125VAC and 110VDC - Max
  • Relay Type: Non-Latching
  • Turn On Voltage (Max): 18 VDC
  • Turn Off Voltage (Min): 2.4 VDC
  • Operating Temperature Range: -40°C to 70°C
  • Popularity: High
  • Supply and Demand Status: Limited
  • Applications: Industrial, communications, and networking, as well as test and measurement
