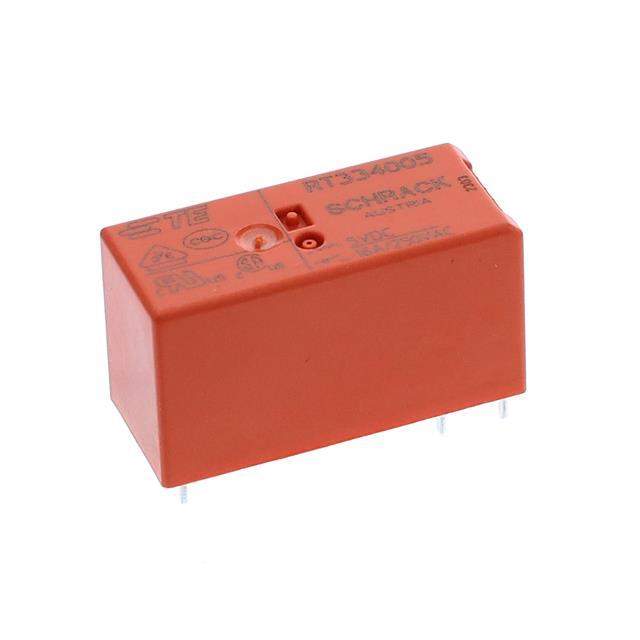

4-1393240-0 Real Image
Same model may have multiple batches, images only for reference.

4-1393240-0

Part No 4-1393240-0
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description General Purpose Power PCB Relay SPST-NO 16A 5VDC 62Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package DIP
Coil Current 80 mA
Coil Power 400 mW
Coil Resistance 62 Ω
Coil Voltage (DC) 5 V
Contact Current Rating 16 A
Contact Material Silver
Depth 12.7 mm
Dropout Voltage 500 mV
ELV Compliant
Length 29 mm
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Number of Pins 6
Operate Time 8 ms
Packaging Box
Radiation Hardening No
RoHS Compliant
Termination PC Pin
Throw Configuration SPST
Voltage Rating (AC) 400 V
Win Source Part Number 1224980-4-1393240-0
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4-1393240-0 CAD Model

Description

The TE Connectivity 1224980-4-1393240-0 is a signal relay that is perfect for a variety of applications.

  • Termination: PC pin
  • Contact Material: silver
  • Length: 29mm
  • Depth: 12.7mm
  • Coil Resistance: 62Ω
  • Coil Current: 80mA
  • Contact Current Rating: 16A
  • Operate Time: 8ms
  • Throw Configuration: SPST
  • Coil Voltage: 5VDC
  • Package: box
  • RoHS Compliant: Yes
  • ELV Compliant: Yes
