Same model may have multiple batches, images only for reference.

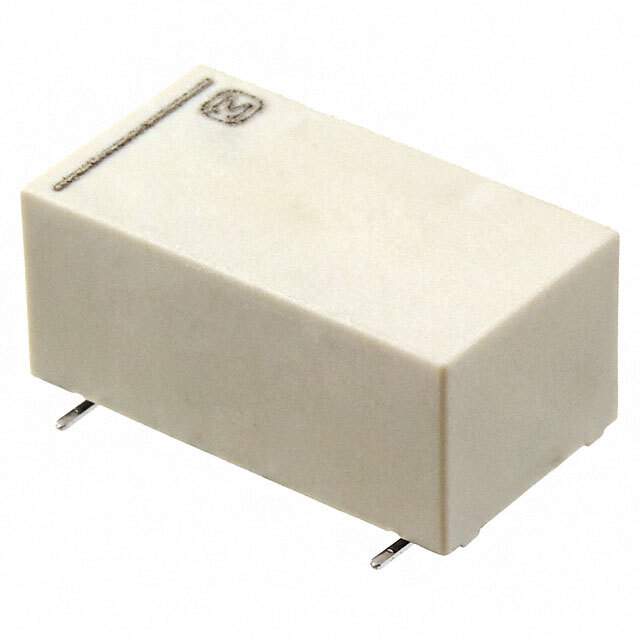

ARE10A24 Real Image
Same model may have multiple batches, images only for reference.

ARE10A24

Part No ARE10A24
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY RF SPDT 500MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type RF
Coil Type Non Latching
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500mA
Switching Voltage 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 142607-ARE10A24
Popularity Medium
Supply and Demand Status Limited
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian ARE10A24 CAD Model

Description

ARE10A24

The ARE10A24 is an essential electronic component tailored for specific high-intensity functions. It excels in applications requiring precision and durability, making it a valuable asset in technical environments.

  • Applications: Power Supply Systems, Industrial Machinery, High-Frequency Applications, Telecommunication Equipment

Features and Benefits

  • Precision Engineering: Offers accurate performance metrics vital for sensitive applications.
  • Durability: Built to last, even under constant stress and high operational loads.
  • Flexibility: Can be tailored to fit various device specifications due to its adaptable nature.
  • Cost-Effective: Provides an optimal balance of performance and investment.

For detailed technical specifications, please refer to the manufacturer's datasheet.
