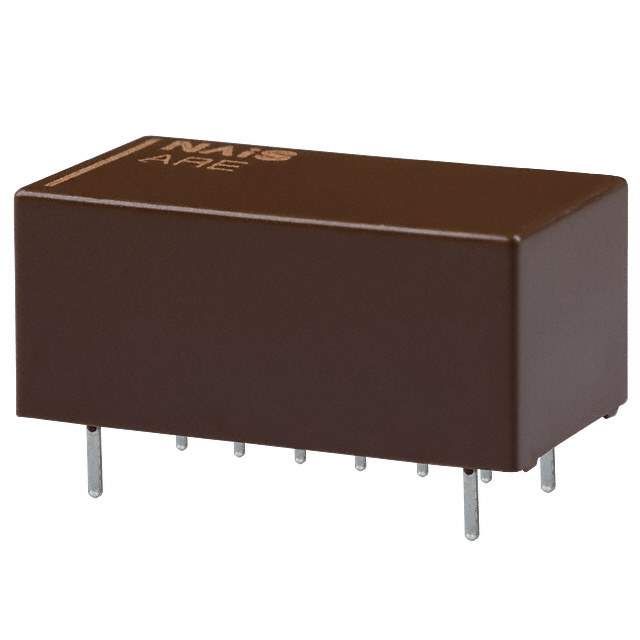

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Relay Type RF
Coil Type Non Latching
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500mA
Switching Voltage 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 10ms
Release Time 5ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 142108-ARE13A24Z
Popularity Medium
Supply and Demand Status Limited
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian ARE13A24Z CAD Model

Description

Features and Benefits of ARE13A24Z

  • High-efficiency: Delivers outstanding power conversion with minimal energy loss.
  • Compact Size: Small form factor, making it suitable for use in space-constrained applications.
  • Durable Design: Built to withstand high temperatures and harsh environmental conditions.

Applications

  • Industrial Automation Systems
  • Robotics
  • Precision Control Devices

The ARE13A24Z component is ideal for high-performance applications demanding reliability and efficiency. It provides seamless integration with various industrial systems, ensuring optimal functionality.
