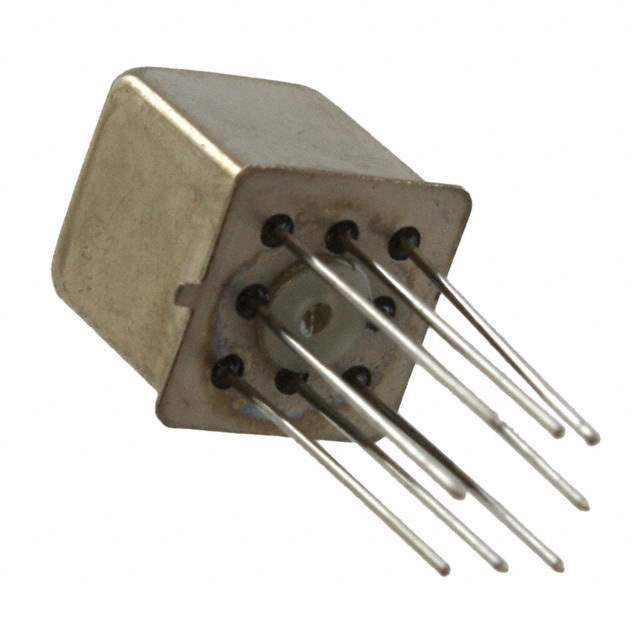

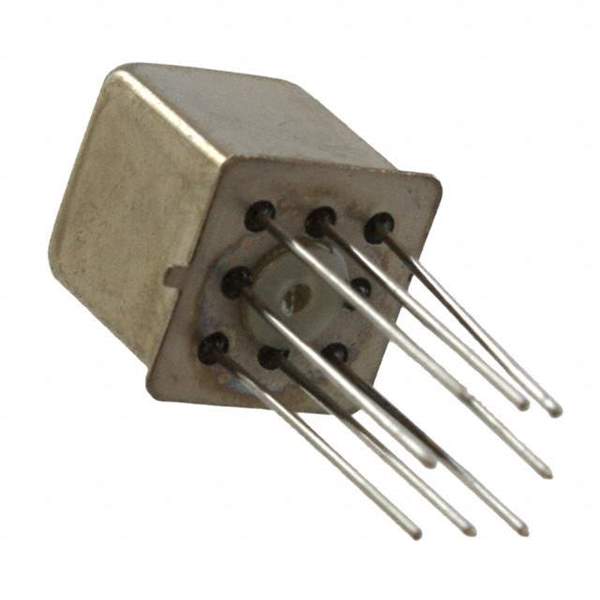

JMGSCD-26MW

Name: JMGSCD-26MW
Brand: TE Connectivity
SKU: 785039
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JMGSCD-26MW
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	Signal Relay 26.5VDC 1A DPDT(9.4x10.38x9.53)mm THT / RELAY GEN PURPOSE DPDT 1A 26.5V
Datasheet	JMGSCD-26MW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	TE Connectivity Aerospace, Defense and Marine
Series	Military, MIL-R-39016/42, MGS, CII
Packaging	Bulk
Relay Type	General
Coil Type	Non Latching
Coil Current	8.3mA
Coil Voltage	26.5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	1A
Switching Voltage	28VDC - Nom
Turn On Voltage (Maximum)	14 VDC
Turn Off Voltage (Minimum)	1.4 VDC
Operate Time	4ms
Release Time	7.5ms
Features	Sealed - Hermetically
Mounting Style	Through Hole
Termination Style	PC Pin
Coil Power	219 mW
Coil Resistance	3.2 kOhms
Operating Temperature Range	-65°C ~ 125°C
Win Source Part Number	785039-JMGSCD-26MW
Popularity	Medium
Supply and Demand Status	Limited
Family Name	JMGSCD-26MW
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	India, United States of America
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian JMGSCD-26MW CAD Model

Alternative Products

Description

The TE Connectivity Aerospace, Defense and Marine JMGSCD-26MW is a DPDT (2 Form C) general relay. The specifications include:

Mounting Type: Through Hole
Coil Voltage: 26.5VDC
Coil Resistance: 3.2 kOhms
Contact Rating (Current): 1A
Switching Voltage: 28VDC - Nom
Operating Temperature: -65°C ~ 125°C
Release Time: 7.5ms
Sealed: Hermetically
AEC-Q200 Rated: Yes
Supply and Demand Status: Limited
Compliance: Halogen-Free
