TSC-109L3H,000

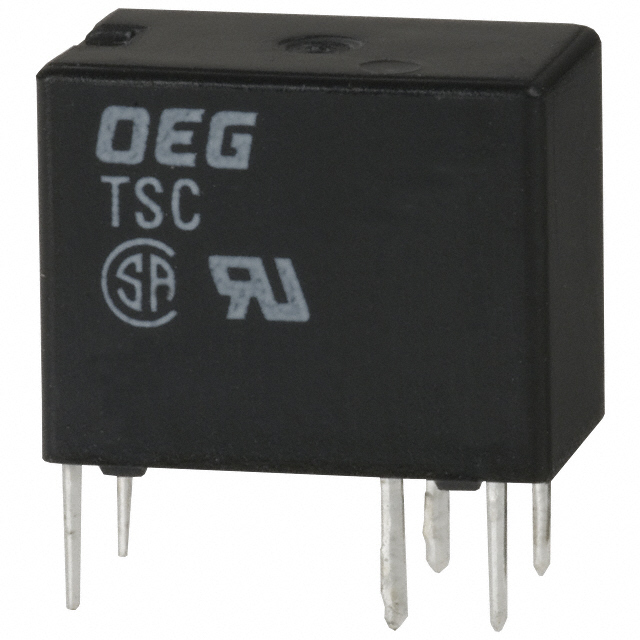

Name: TSC-109L3H,000
Brand: TE Connectivity
SKU: 798464
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TSC-109L3H,000
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY TELECOM SPDT 1A 9V / Signal Relay 9VDC 1A SPDT THT
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	TE Connectivity Potter & Brumfield Relays
Series	TSC, OEG
Packaging	Tube
Relay Type	Telecom
Coil Type	Non Latching
Coil Current	16.7mA
Coil Voltage	9VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	1A
Switching Voltage	120VAC, 30VDC - Max
Turn On Voltage (Maximum)	6.75 VDC
Turn Off Voltage (Minimum)	0.45 VDC
Operate Time	5ms
Release Time	5ms
Features	Sealed - Fully
Mounting Style	Through Hole
Termination Style	PC Pin
Contact Material	Silver Nickel (AgNi)
Coil Power	150 mW
Coil Resistance	540 Ohms
Operating Temperature Range	-30°C ~ 80°C
Win Source Part Number	798464-TSC-109L3H,000
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TSC
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	China, Germany, Mexico
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian TSC-109L3H,000 CAD Model

Alternative Products

Description

The TE Connectivity Potter & Brumfield Relays electronic component with Win Source Part Number 798464-TSC-109L3H,000 is a sealed-fully SPDT (1 Form C) telecom relay type product.

Contact Form: SPDT (1 Form C)
Supply and Demand Status: Limited
Mounting: Through Hole
Coil Voltage: 9VDC
