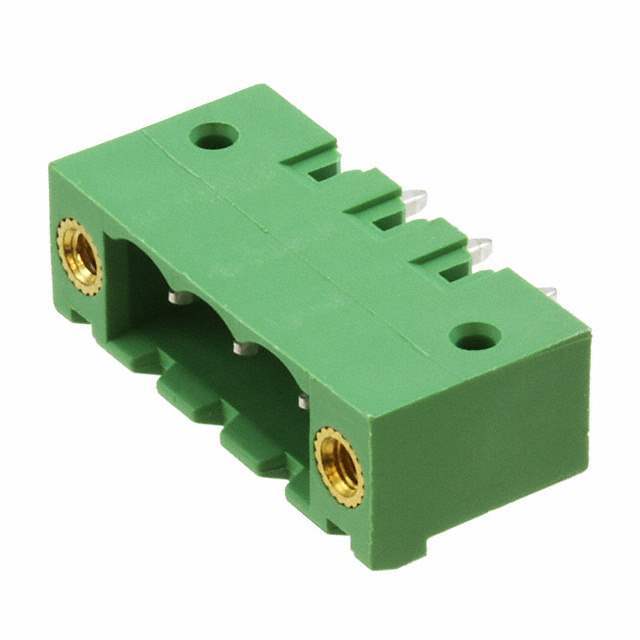

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1203841-1777086
Manufacturer Phoenix Contact
Category Connectors, Interconnects -Terminal Blocks -Headers, Plugs and Sockets
Series COMBICON MSTBV
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Features Mating and Mounting Flange
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.154" (3.90mm)
Ultra Librarian 3D Model Ultra Librarian 1777086 CAD Model

Description

• Maximum flexibility when it comes to device design – one header for connectors with different connection technologies • Well-known mounting principle allows worldwide use<br /> • Vertical connection enables multi-row arrangement on the PCB • Screwable flange for superior mechanical stability
