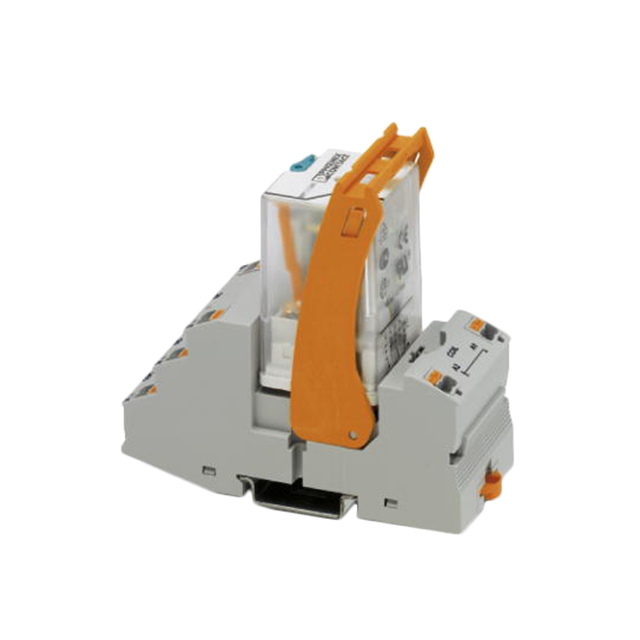

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting Type DIN Rail
Coil Voltage 5VAC/DC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 250VDC - Max
Coil Current 23 mA
Coil Type Non Latching
Termination Style Screw Terminal
Operate Time 8 ms
Release Time 15 ms
Temperature Range - Operating -20°C ~ 50°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1549776-2941183
Ultra Librarian 3D Model Ultra Librarian 2941183 CAD Model
