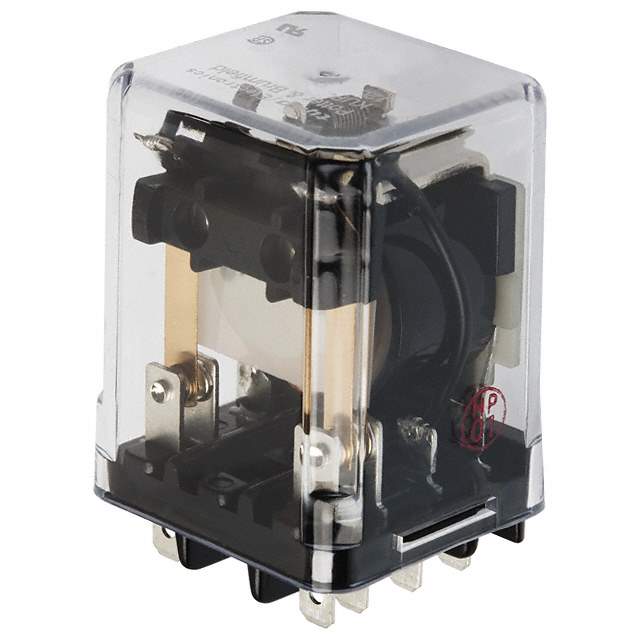

KUP-11A11-120 Real Image
Same model may have multiple batches, images only for reference.

KUP-11A11-120

Part No KUP-11A11-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 120V / General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KUP
Package Bulk
Mounting Type Socketable
Coil Voltage 120VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5 A
Switching Voltage 240VAC - Max
Coil Current 17.5 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 102 VAC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 55°C
Contact Material Silver (Ag)
Relay Type General Purpose
Coil Resistance 2.25 kOhms
Base Product Number KUP-11
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0050
Other Names 1-1393117-7,-1-1393117-7-SI,PB1943,113931177,1-1393117-7-ND,KUP-11A11-120-ND
Standard Package 25
Win Source Part Number 1041929-KUP-11A11-120
Ultra Librarian 3D Model Ultra Librarian KUP-11A11-120 CAD Model

Description

The KUP series of power relays from TE Connectivity Potter & Brumfield Relays is a DPDT (2 Form C) relay that is socketable and has a coil voltage of 120VAC.

  • Win Source Part Number: 1041929-KUP-11A11-120
  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 120VAC
  • Switching Voltage: 240VAC
  • Contact Rating (Current): 5 A
  • Coil Resistance: 2.25 kOhms
  • Coil Current: 17.5 mA
  • Operating Temperature: -45°C to 55°C
  • REACH Affected: Yes
