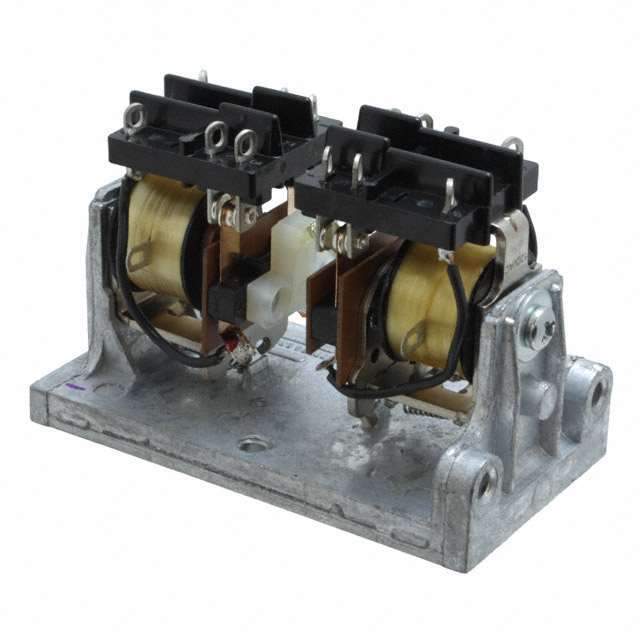

KB-17AG-120 Real Image
Same model may have multiple batches, images only for reference.

KB-17AG-120

Part No KB-17AG-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 10A 120V
Datasheet
KB-17AG-120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Latching, Dual Coil
Coil Current 44mA
Coil Voltage 120VAC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 10A
Switching Voltage 120VAC - Max
Turn On Voltage (Max) 102 VAC
Mounting Chassis Mount
Termination Style Solder Lug
Coil Power 5.3 VA
Coil Resistance 1.03 kOhms
Temperature Range - Operating -45°C to 85°C
Win Source Part Number 1021377-KB-17AG-120
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian KB-17AG-120 CAD Model

Description

The KB-17AG-120 is a 4PDT (4 Form C) chassis mount relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Supply and Demand Status: Sufficient
