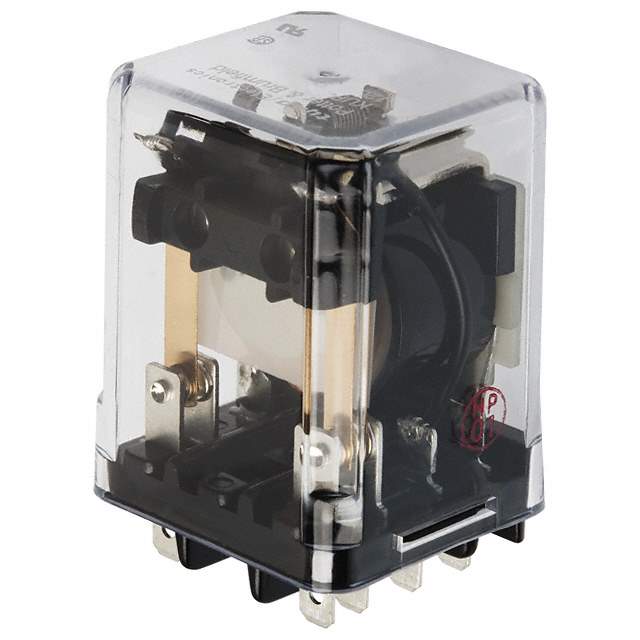

KUP-11D15-24 Real Image
Same model may have multiple batches, images only for reference.

KUP-11D15-24

Part No KUP-11D15-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description KUP Series Panel Plug-in Relay | RELAY GEN PURPOSE DPDT 10A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Mounting Style Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10A
Switching Voltage 240VAC - Max
Coil Current 51.0mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 18 VDC
Operate Time 15ms
Release Time 10ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 472 Ohms
Manufacturer Pack Quantity 25
MSL Level Not Applicable
Win Source Part Number 1194088-KUP-11D15-24
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Robotics, HVAC, Power Management, Medical, Clock & Timing, Commercial
Ultra Librarian 3D Model Ultra Librarian KUP-11D15-24 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays are high-quality general-purpose relays that are widely used in industrial, robotics, HVAC, power management, medical, clock & timing, and commercial applications.

  • Contact Form: DPDT (2 Form C)
  • Switching Voltage: 240VAC - Max
  • Mounting Type: Socketable
  • Termination Style: Plug-in, quick connect - 0.187'' (4.7mm)
  • Coil Voltage: 24VDC
  • Coil Resistance: 472 Ohms
  • Contact Material: Silver cadmium oxide (AgCdO)
  • Operate Time: 15ms
  • Release Time: 10ms
  • Contact Rating: 10A
  • Operating Temperature: -45°C to 70°C
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 25
