FL1012

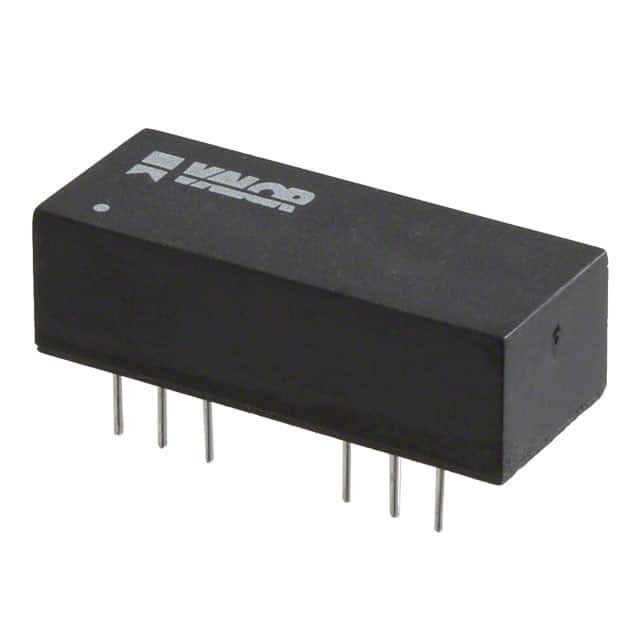

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Size / Dimension 0.995" L x 0.395" W (25.28mmx 10.03mm)
Height - Seated (Max) 0.338" (8.59mm)
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 919150-FL1012
Ultra Librarian 3D Model Ultra Librarian FL1012 CAD Model

Description

The FL1012 is an obsolete pulse transformer designed for various electronic applications.

  • Package: bulk
  • Mounting: through-hole mounting
  • Size: 0.995" x 0.395" (25.28mm x 10.03mm)
  • Height (Seated): 0.338" (8.59mm)
  • Product Status: obsolete
