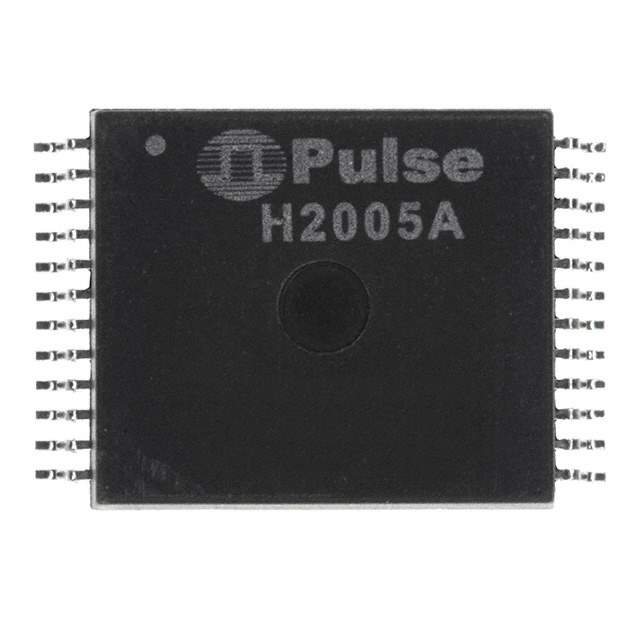

H2005A Real Image
Same model may have multiple batches, images only for reference.

H2005A

Part No H2005A
Manufacturer Pulse
Catalog Pulse Transformers
Description 10/100BASE-TX VoIP Magnetics Modules | MODULE XFRMR VOIP DL LAN 24-SOIC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Bulk
Status Obsolete
Transformer Type LAN
Mounting Style SMD
Parts Dimension 0.510" L x 0.600" W (12.95mm x 15.24mm)
Height - Seated (Maximum) 0.290" (7.36mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.1 oz (2.85g)
Manufacturer Pack Quantity 35
MSL Level 4 (72 Hours)
Win Source Part Number 1178242-H2005A
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian H2005A CAD Model

Description

The 1178242-H2005A is a LAN transformer designed by Pulse Electronics Network. It has a mounting style of SMD and comes in a bulk packaging. The transformer is now obsolete and has a medium popularity.
