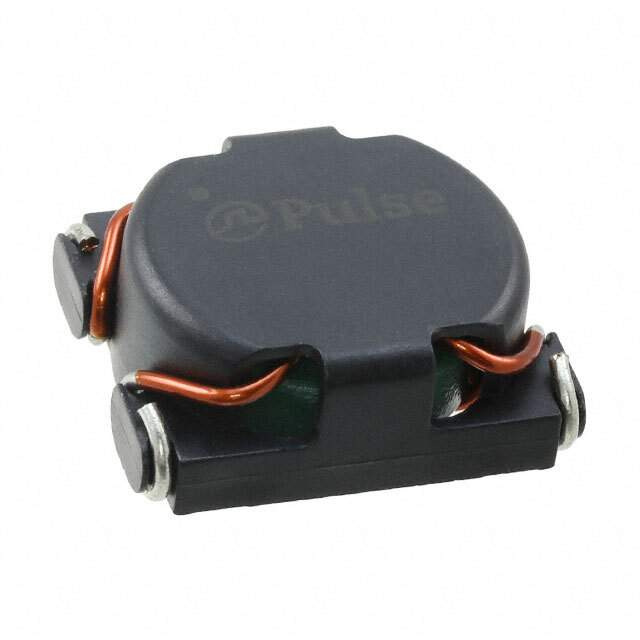

PG1265NL Real Image
Same model may have multiple batches, images only for reference.

PG1265NL

Part No PG1265NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 20A 2LN SMD / 2 Line Common Mode Choke Surface Mount 20A DCR 4.1mOhm
Datasheet
PG1265NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Pulse Electronics
Packaging Tube
Number of Lines 2
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 4.1mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Surface Mount
Size / Dimension 1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max) 0.500" (12.70mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number PG1265NL-ND,553-3913-5
Standard Package 20
Win Source Part Number 1328217-PG1265NL
Ultra Librarian 3D Model Ultra Librarian PG1265NL CAD Model

Description

The Pulse Electronics PG1265NL is a common mode choke filter electronic component with a packaging of tube.

  • Size/Dimension: 1.220" L x 1.000" W (30.99mm x 25.40mm)
  • Current Rating: 20A
  • Standard Package: 20
  • Mounting: Surface mount
  • Temperature Range: -40°C to 130°C
