Same model may have multiple batches, images only for reference.

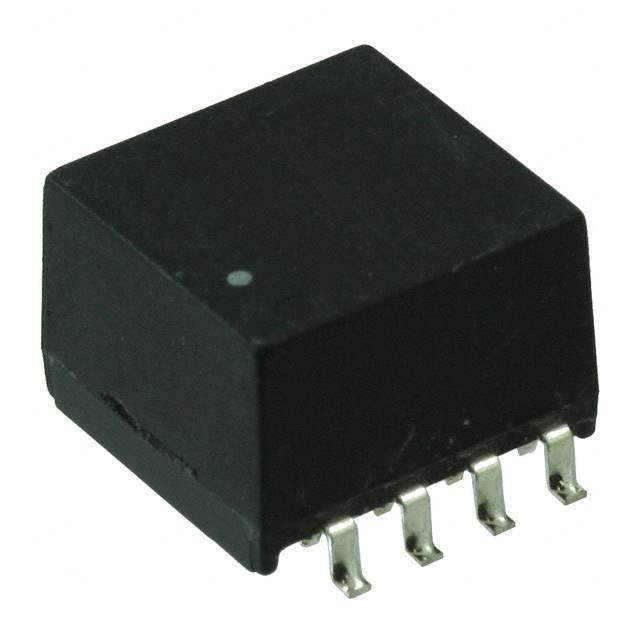

PE-65857NLT Real Image
Same model may have multiple batches, images only for reference.

PE-65857NLT

Part No PE-65857NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description Common Mode Chokes Quad 22.5uH 34dB 0.22Ohm DCR SMD Tube / Surface Mount Common Mode Chokes | COMMON MODE CHOKE 4LN SMD
Datasheet
PE-65857NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Network
Packaging Reel
Filter Type Signal Line
Number of Lines 4
DC Resistance (DCR) (Maximum) 220mOhm
Temperature Range - Operating 0°C ~ 70°C
Mounting Style SMD
Parts Dimension 0.475" L x 0.475" W (12.07mm x 12.07mm)
Height (Maximum) 0.340" (8.64mm)
Manufacturer Package Vertical, 8 Gull Wing
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 715737-PE-65857NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PE-65857
Introduction Date January 27, 2011
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian PE-65857NLT CAD Model

Description

The PE-65857NLT is a signal line filter from Pulse Electronics Network.
