Same model may have multiple batches, images only for reference.

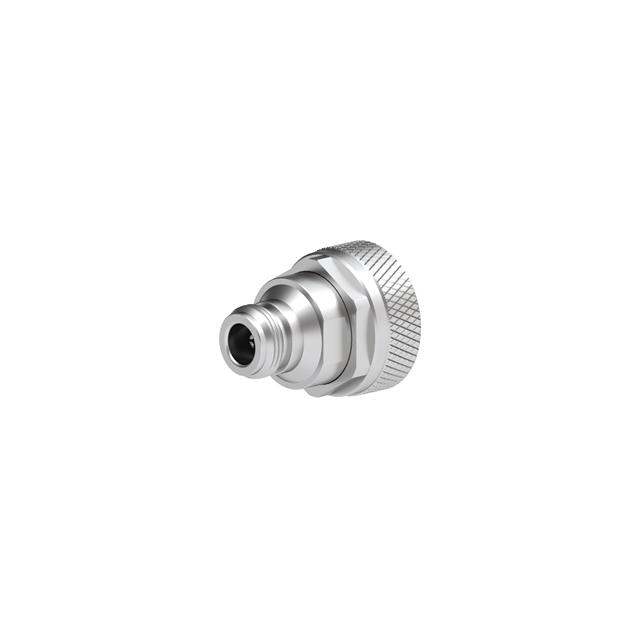

R191722000 Real Image
Same model may have multiple batches, images only for reference.

R191722000

Part No R191722000
Manufacturer Radiall USA, Inc.
Catalog Coaxial Connectors (RF)
Description Conn Type N-7/16 Adapter F/M 0Hz to 7.5GHz 50Ohm ST Silver Over Copper
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Brass
Connector Type Coaxial
Contact Material Copper
Contact Plating Silver
Frequency 7.5 GHz
Gender Type A Female
Gender Type B Male
Impedance 50 Ω
Insulation Material Polytetrafluoroethylene
Length 36.2 mm
Max Operating Temperature 155 °C
Min Operating Temperature -55 °C
Mount Socket
Orientation Straight
Plating Nickel
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Win Source Part Number 1128657-R191722000
Categories Coaxial Connectors(RF)
Manufacturer Radiall USA, Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian R191722000 CAD Model

Description

Radiall USA, Inc. offers a 1128657-R191722000 connector with a coaxial type and a socket mount.

  • Connector Type: coaxial
  • Mount: socket
  • Body Material: brass
  • Contact Material: silver
  • Plating: nickel
  • Orientation: straight
  • Length: 36.2 mm
  • Impedance: 50 Ω
  • Frequency: 7.5 GHz
  • Body Insulation Material: Polytetrafluoroethylene
  • Operating Temperature Range: -55°C to 155°C
  • RoHS: compliant
  • Gender Type A: female
  • Gender Type B: male
